Patient transfer stretcher is the traditional advantage project of our factory. We have over dozens of outlook for your choosing. We not only offer manual function, but also hydraulic function, even electric function is also available. The trolleys can be used in emergency room, ward room, endoscope and colonoscopy room. Our transfer trolley are well sold to over 50 countries during recent 5 years, including America and European countries, it makes patient stretcher become one of our most popular products. Our patient transfer stretcher have our unique patent and outlook, which makes our products have high and reliable quality, and super attractive price, we are very confident you will like our trolley.

  • Size: 1970*640*560-860mm
    Functions:
    · HI-LOW: 56-86cm
    · Back section adjustable from: 0 to 60°
    ·Loading capacity: 180kgs Description:

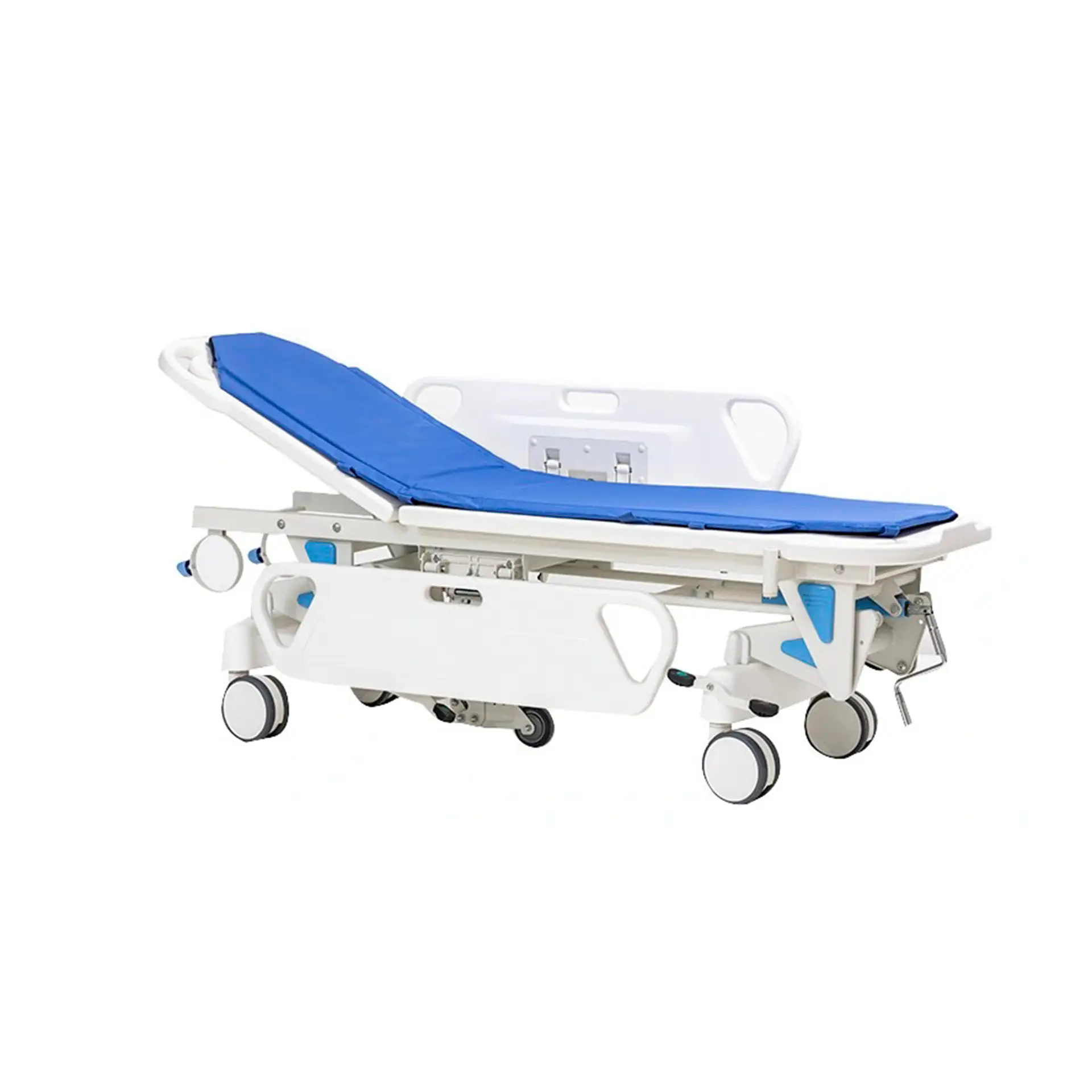

    ·It is a type of manual transfer stretcher.
    ·Bright arrow symbols direct the users how to operate clearly
    ·Central-lock castors, diameter 125mm. Matched with direction
    castor under the chassis, which help the users easy control the
    stretcher direction
    ·Side rails: 2pcs, ABS, detachable
    ·Back section is operated by gas spring
    ·ABS patient platform
    ·Single crank for height adjustment
    ·Standard accessories: Mattress, I.V. Drip pole

.Technical Parameter
.Total Length: 1930mm
.Total width: 663mm
.Bed height adjustment .range: 510-850mm
.Back rest range: 0-70°
.Loading capacity: 170kg
.Technical Configuration
. Manual crank 1pc
.5-inch double side castors 4pcs
.ABS side rail 1 set
.Central braking foot pedal at dual side 1set
.Standard Configuration:Transfer Mattress,y Pole prevision

Size: 1950*650*550-840mm
Functions:
· HI-LOW: 55-84cm
· Back section adjustable from: 0 to 60°
·Trendelenburg & Reserve Trendelenburg angle:0 to 13°
Description:

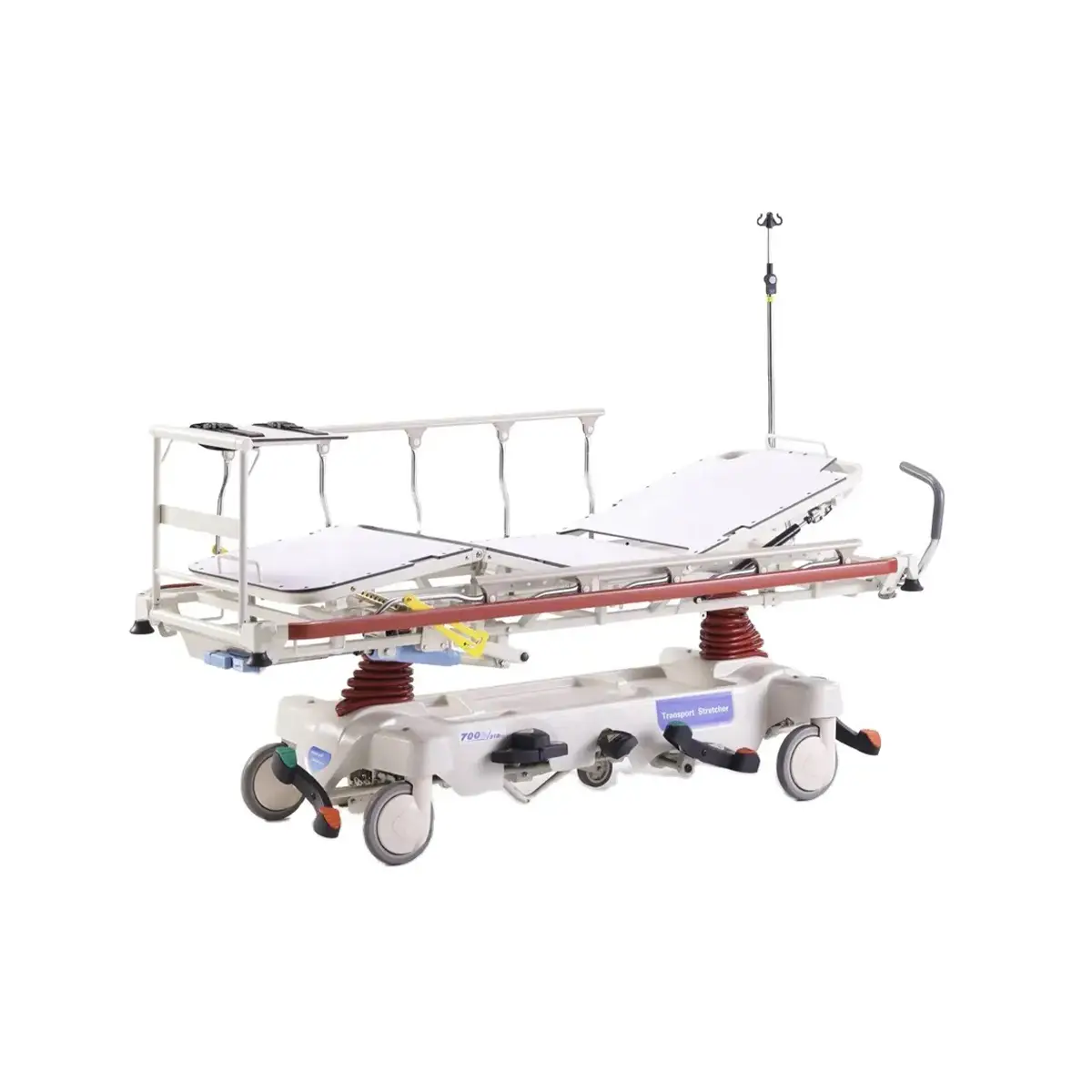

·It is a type of hydraulic transfer stretcher. Five functions available
by pressing the foot-pedals
·Bright arrow symbols direct the users how to operate clearly
·Central-lock castors, diameter 150mm. Matched with direction
castor under the chassis, which helps the users easily control the
stretcher direction
·Side rails: 2pcs, ABS, detachable
·ABS patient platform
·Loading capacity: 180 kgs
·Standard accessories: Mattress, I.V. Drip pole

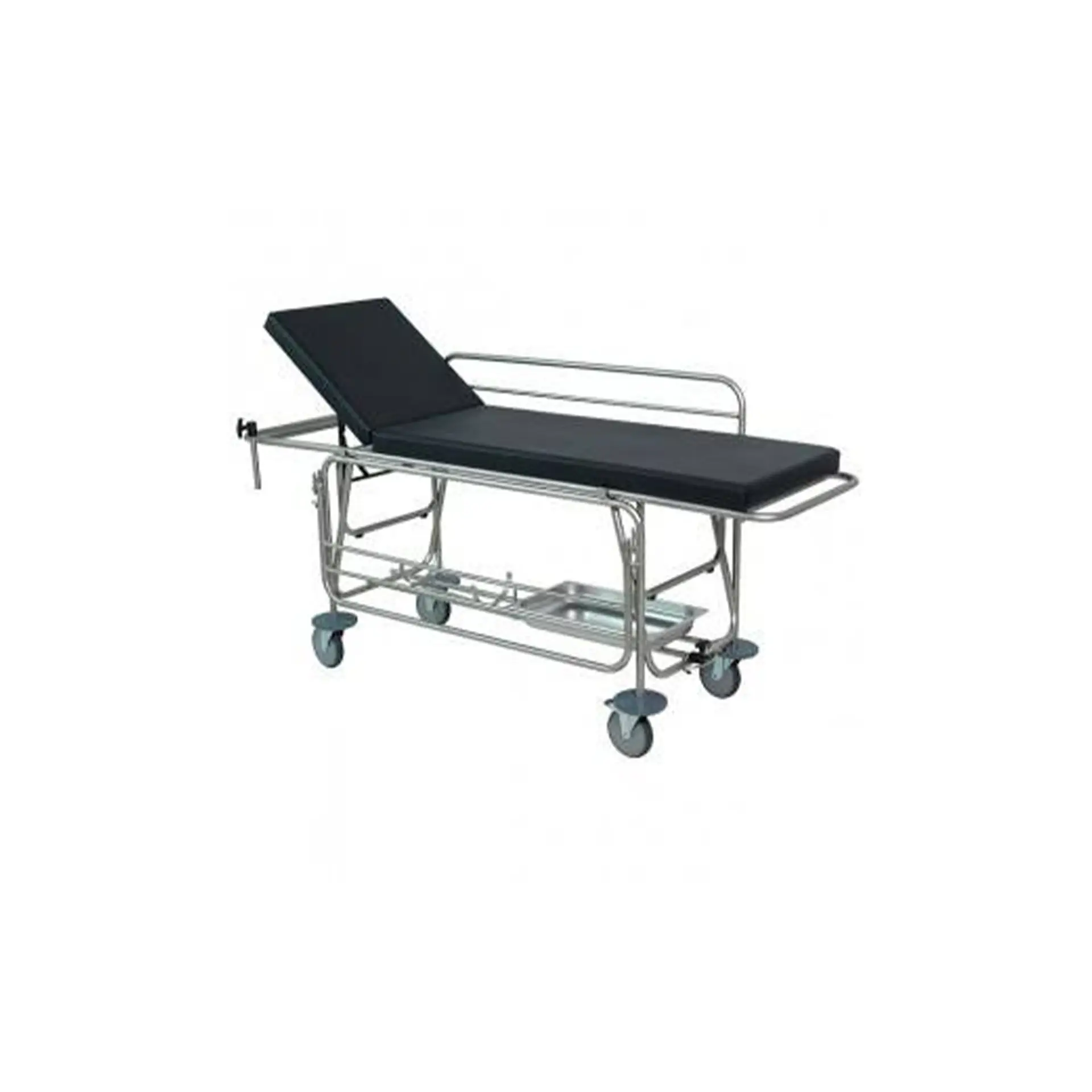

Size:1950*650*600-800mm
height is adjusted by crank
Stainless steel material
Four rubber coverd wheels
Load bearing:200kgs

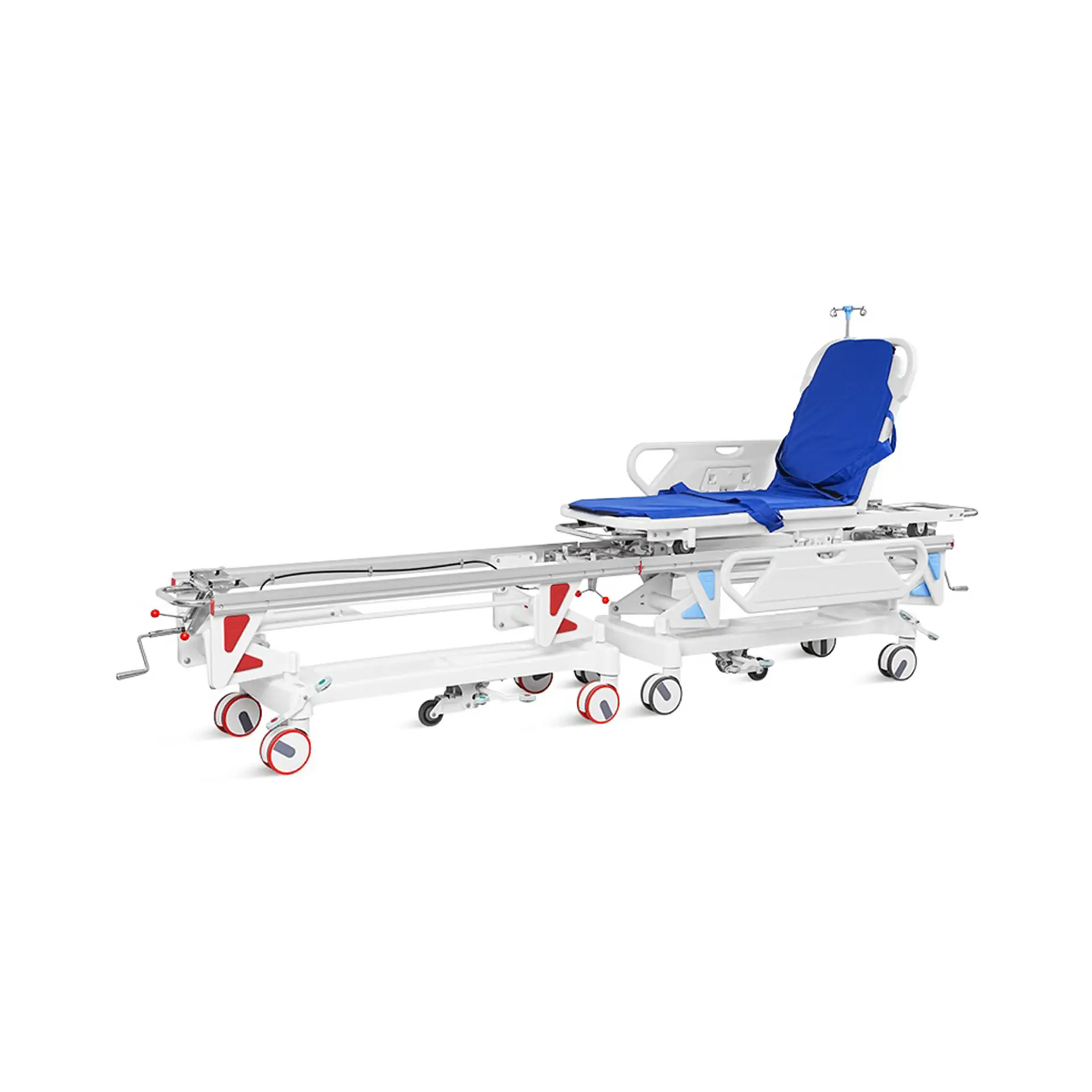

·Size: 3650*640*640/920mm
Functions:
·HI-LOW: 64-92cm
· Back section adjustable from: 0 to 75°
Description:
·Epoxy coated steel.
Accessories:
·Side rails: 2pcs, ABS, detachable
·Operated by manual crank
·ABS patient platform
·Castors: 125mm castors with central locking system
·Single crank for height adjustment
·Loading capacity: 180kgs

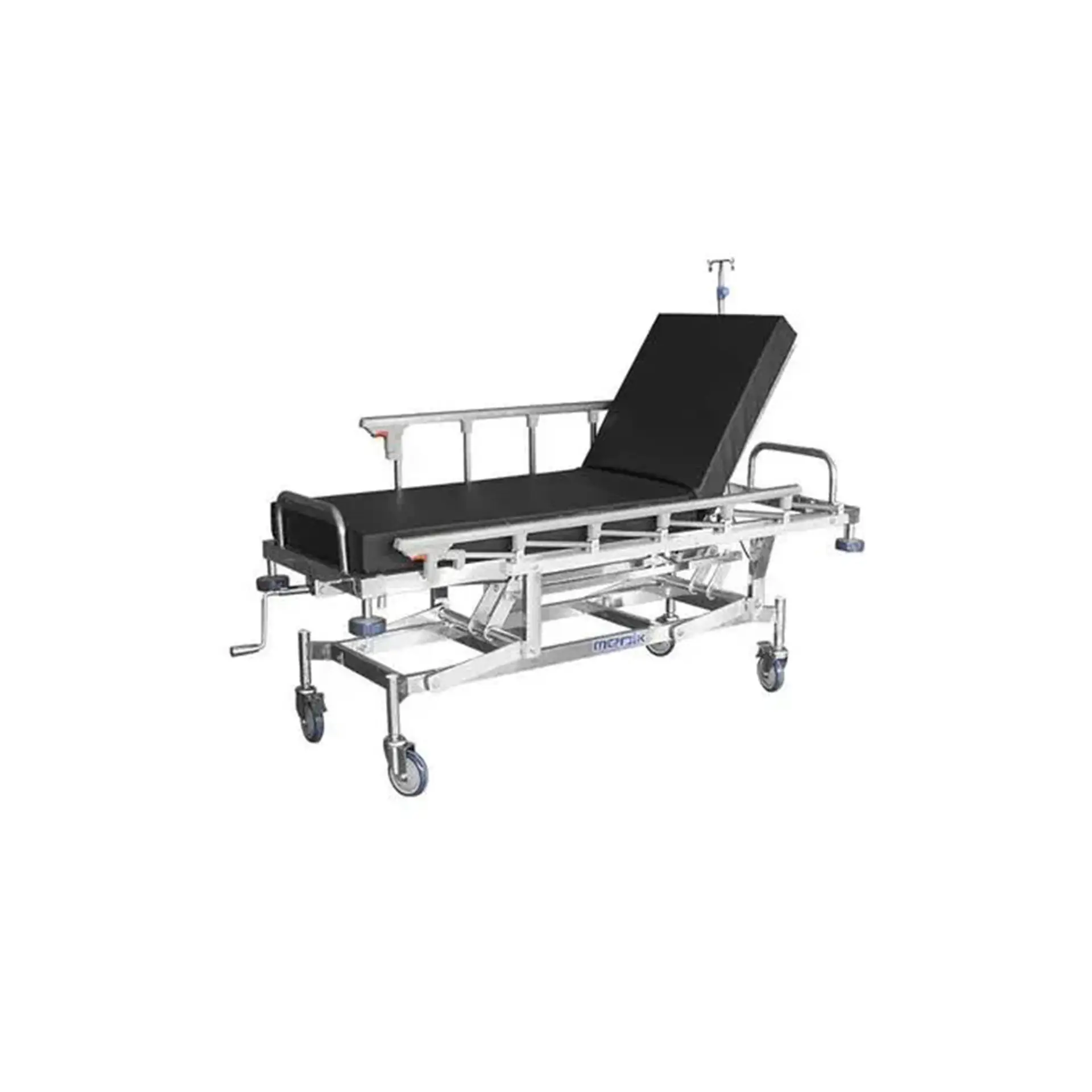

.Size:1950*650*600-800mm
.Backrest, kneerest, height adjustable by crank
.Stainless steel material
.Four rubber-covered wheels
.Load bearing:200kgs
.Accessories: One tray and one oxygen holder

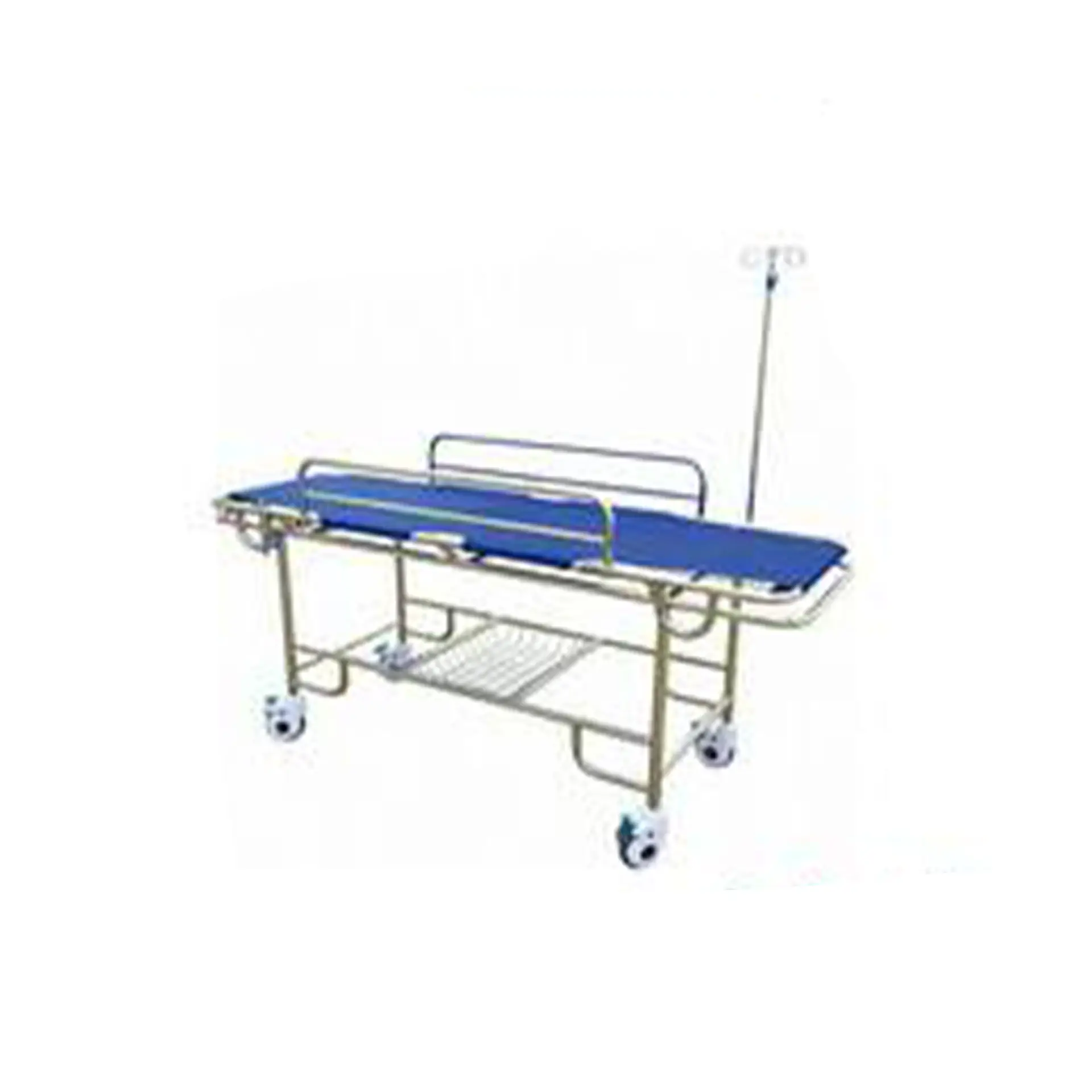

.Size:1950*600*800cm
·Stainless steel material
·Four swivel castors, two with brake
·Load bearing:200kgs

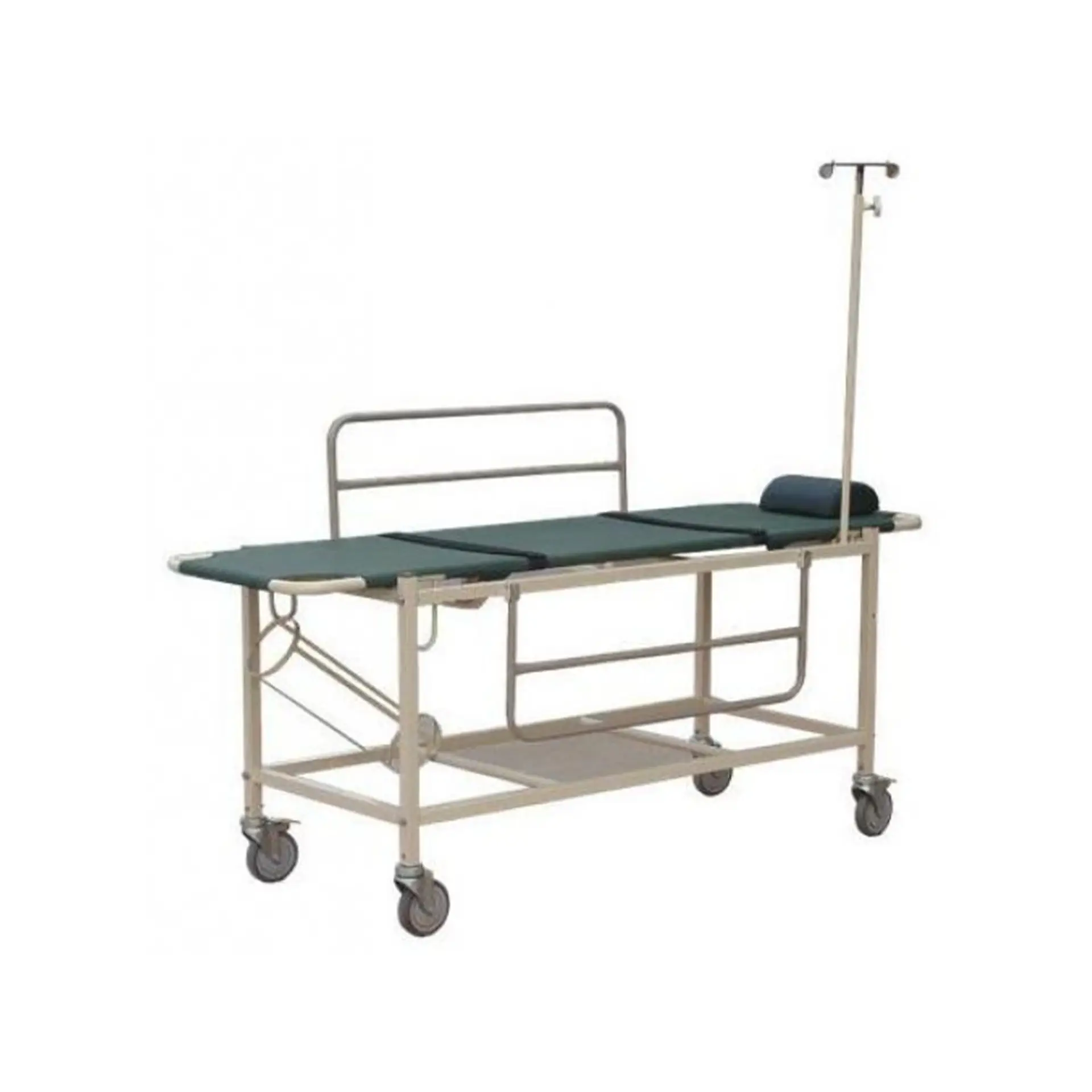

.Size:195*60*80cm
·Epoxy painted steel material
·Four swivel castors, two with brake
·Load bearing:200kgs
·Accessories: One tray and one oxygen holder

·Size:1860*650*500-900mm
·Stainless steel material
·Height adjusted by crank
·Four swivel castors, two with brake
·Load bearing:200kgs

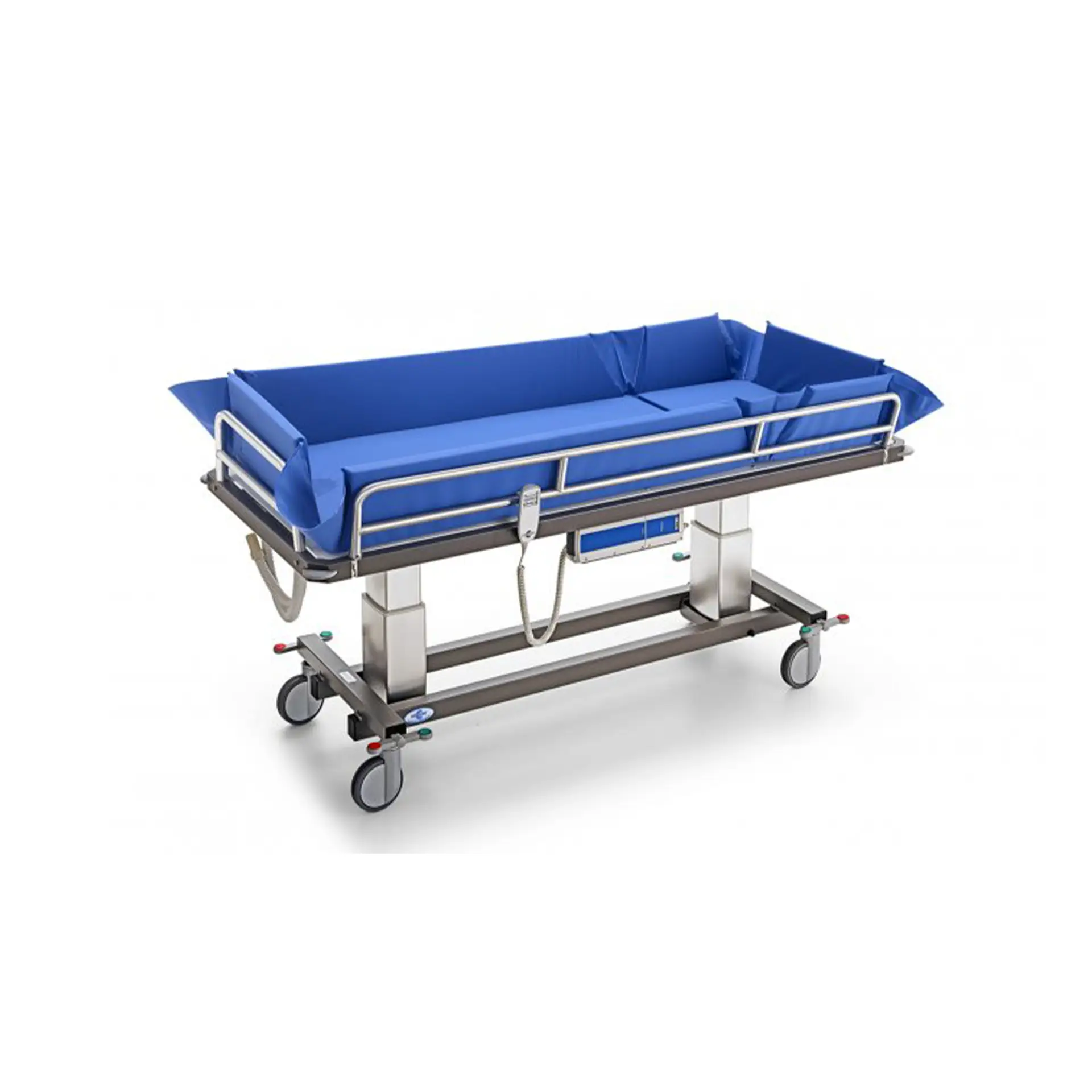

Size:1860*650*500-900mm
·Stainless steel material
·Height adjusted by motor
·Four swivel castors, two with brake
·Load bearing:200kgs

  • Technical Parameter
  • Total Length: 1970mm
  • Total width: 650mm
  • Bed height adjustment range: 560-860mm
  • Back rest range: 0-75°
  • Knee rest range: 0-30°
  • Trendelenburg&Reverse-Trendelenburg: 0-13°
  • Loading capacity: 200kg
  • Technical Configuration
  • Hydraulic pedal 1 set
  • 8inch luxury castors 4pcs
  • Stainless steel side rail 1 set
  • Central braking foot pedal at dual side 1 set
  • Standard Configuration: Transfer Mattress,IV Pole prevision
