Examination and
operation couch

Examination Couch

Medical couch mainly refer to manual medical couch，it is very normal in all the departments in the hospital, we have different material for our exam couch like epoxy painted steel and stainless steel. There are two main operating principle, one is mechanism and one is hydraulic.
The cushion of the exam table can be customized, we can make them thicker or thinner as client’s demand.
We use high quality artificial leather, the color can be optional, and our material is antibacterial. We can also add paper roll holder and swivel castors on our exam couch, our exam table is very friendly to the patients.

Electric Examination Couch

Electric Examination couch is a kind of luxury couch. They are normally used outpatient department and rehabilitation center. Our electric examination couch is very popular in the health recovery center, the tables function is including: back part adjustment, leg part adjustment, height adjustment, bed turnover, hand rest adjustment and etc.

operation couch

Our operating couch is designed to support patients in various
positions during surgeries, such as lying flat, inclined, or tilted.
It often has adjustable height, backrest, and tilt functions to
accommodate different types of procedures and ensure the best
access for the surgical team.

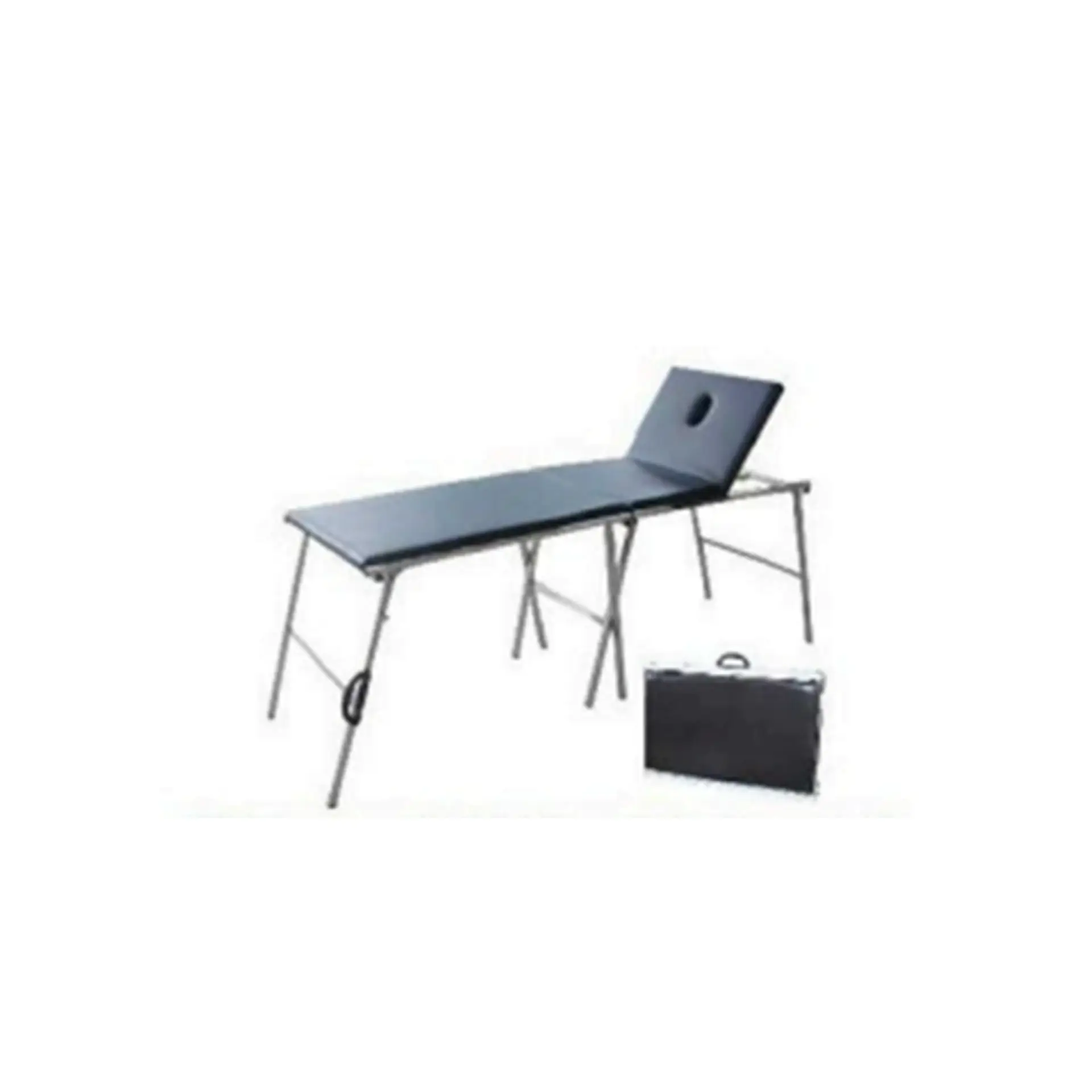

1. size:L190*W60*H70cm
2. powder coated steel frame, legs protected by rubber feet.
3. covered by antibacterial artificial leather, easy for clean.
4. Portable, easy to carry
5. Back adjustable:0~60 degree
6. Load bearing:135kg

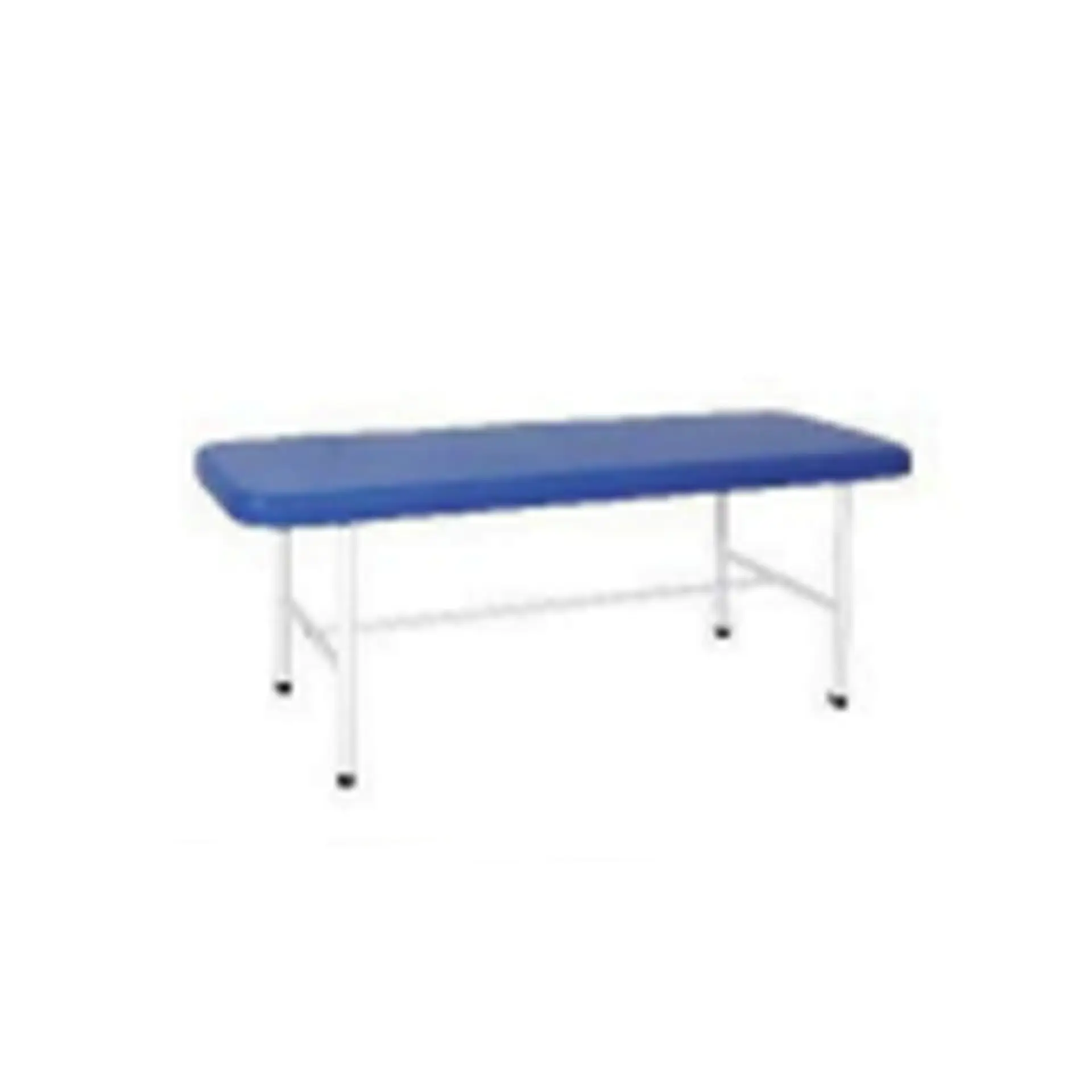

1.powder coated steel frame
2.high density sponge covered by waterproof artifical leather
3. knock down construction
4.Size:190*60*70cm
5.Load bearing:159kgs

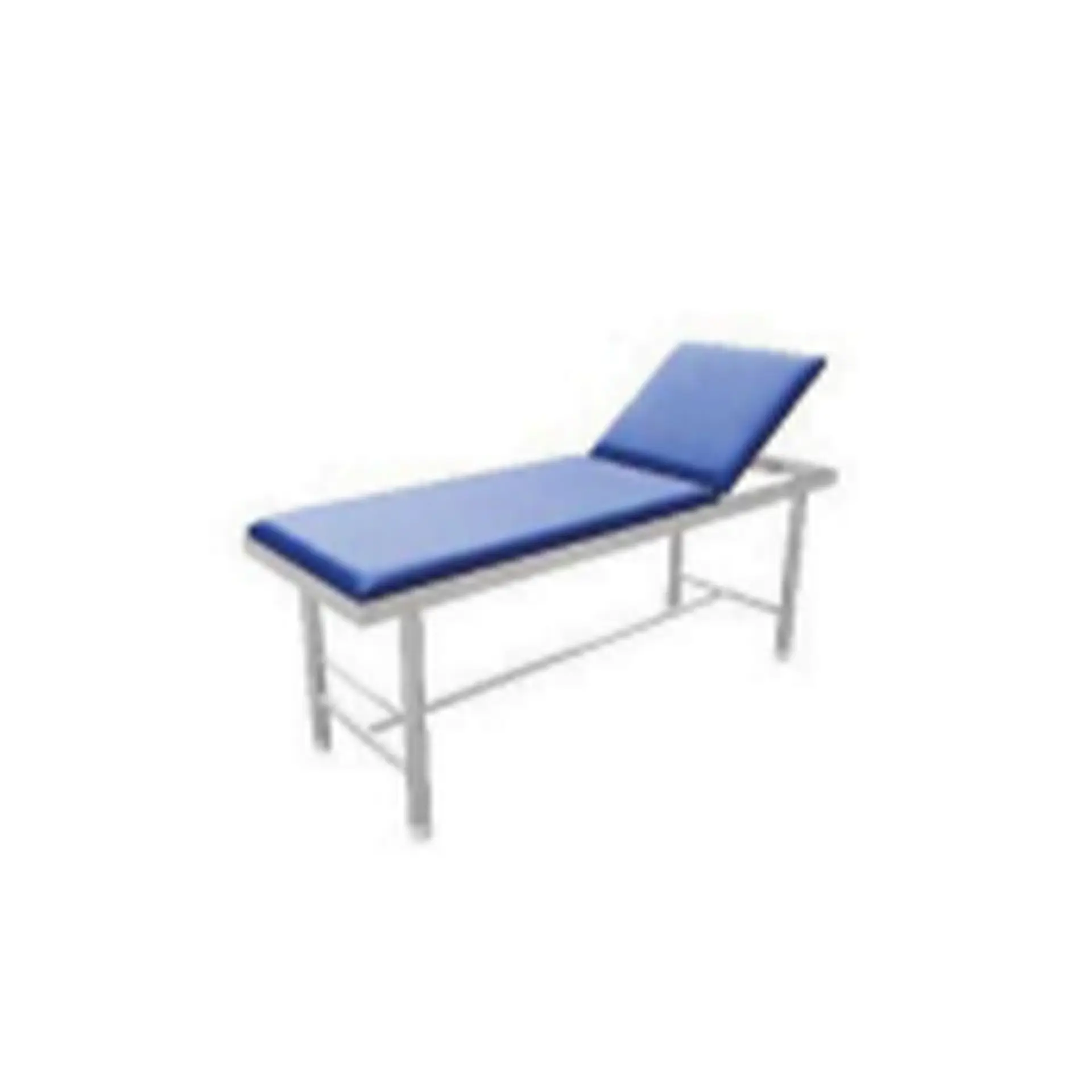

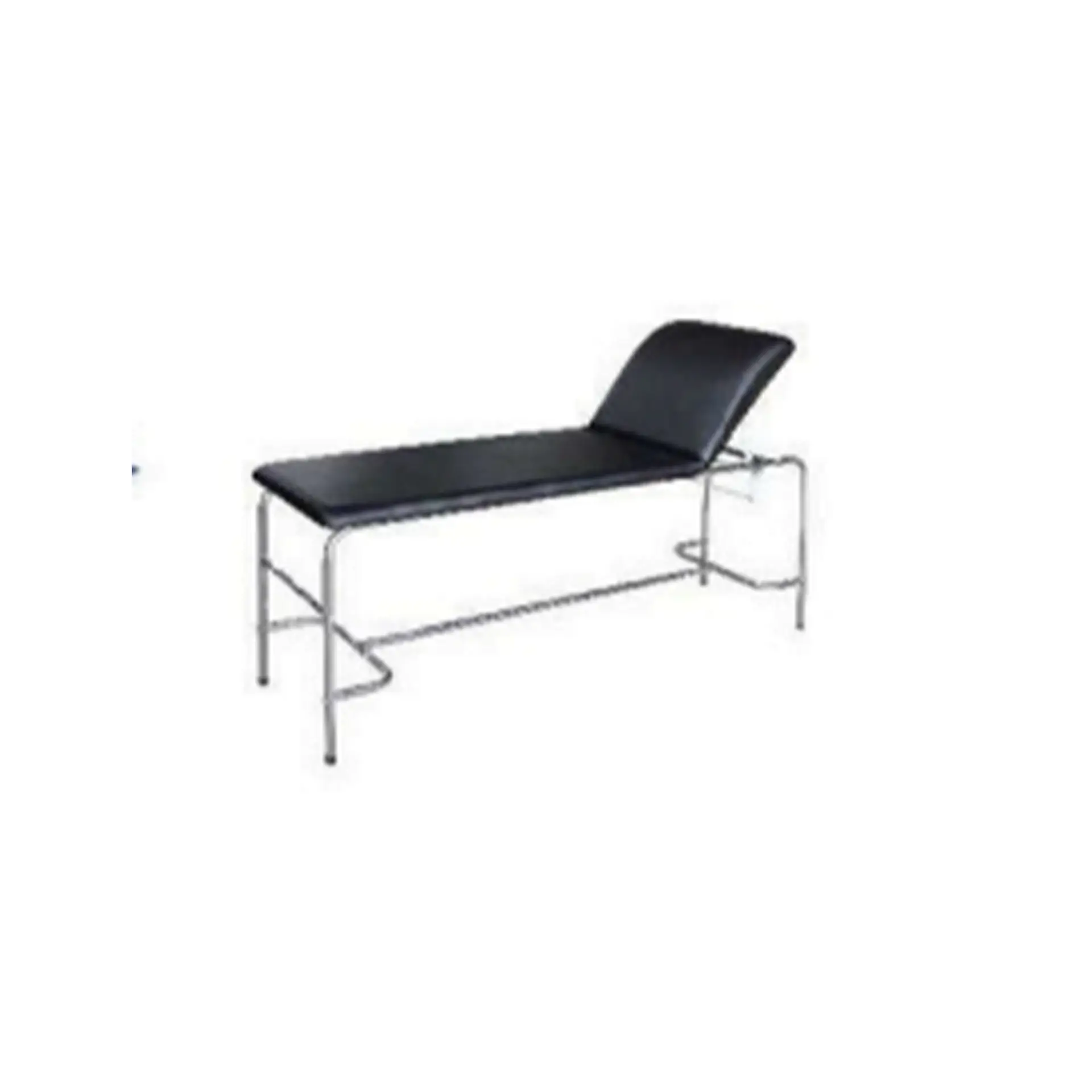

1. size:L190*W60*H70cm
2. Stainless steel frame, legs protected by rubber feet.
3. 4cm mattress covered by antibacterial artificial leather, easy for clean.
4. Back adjustable:0~70 degree
5. Load bearing:170kg

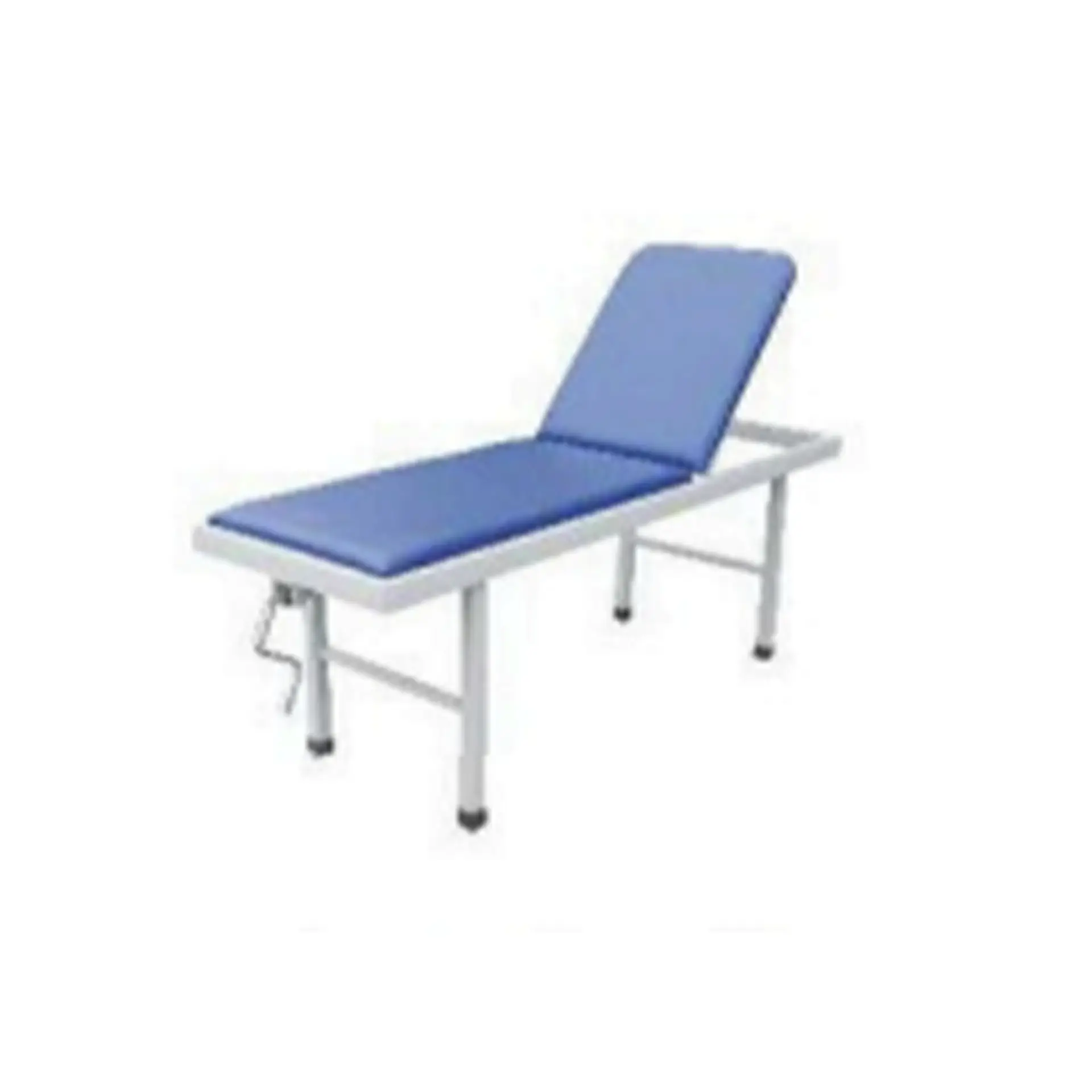

1. powder-coated steel frame
2.high density sponge covered by waterproof artificial leather
3. knock down construction
4. The  back is adjustable by crank
5.Size:190*60*70cm
6.Load capability:180kgs

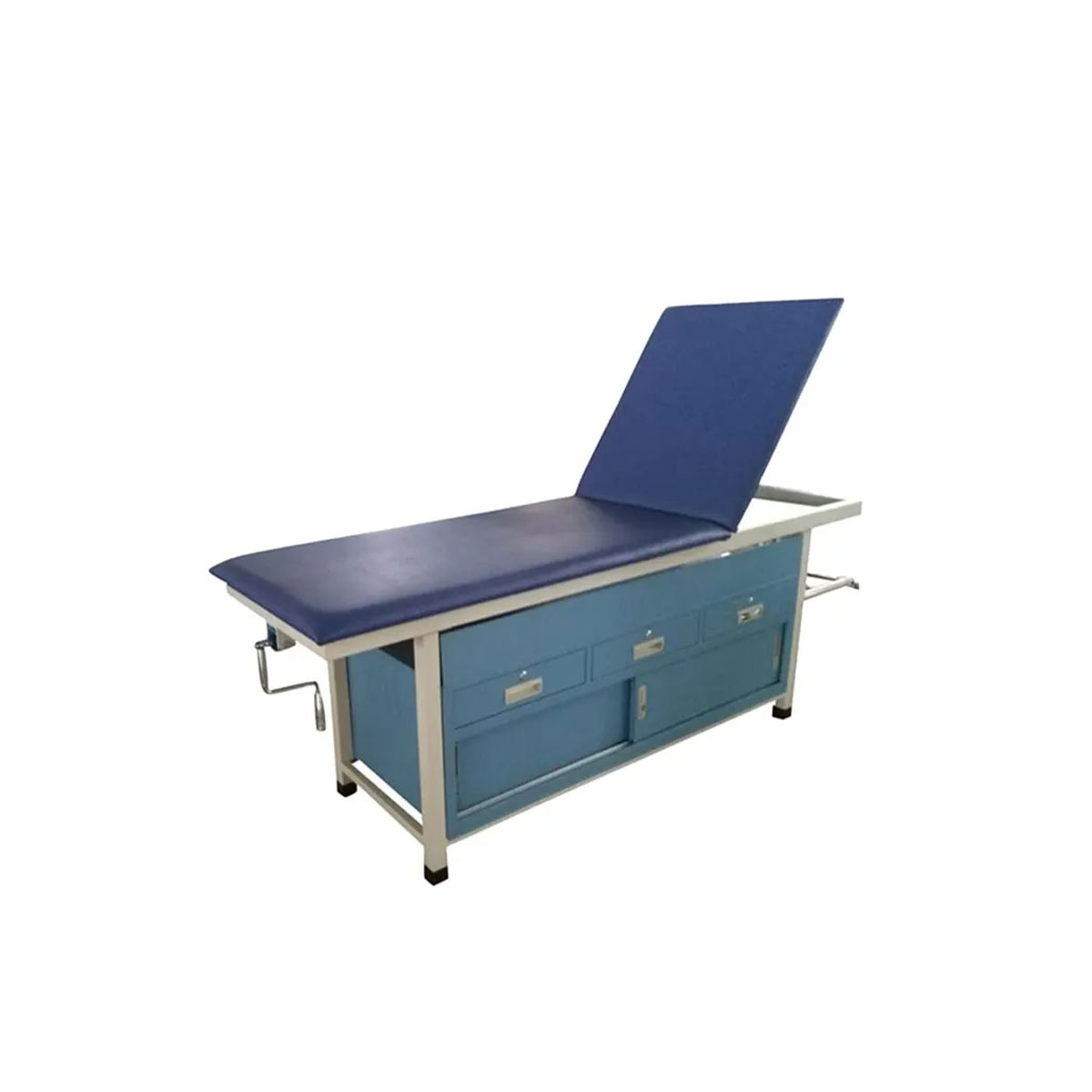

1.Steel frame
2.high density sponge covered by waterproof artifical leather
3.back is adjustable by crank
4.with 3 drawers and a big cabinet, one paper roll
5.with I.V drip pole
6.Size:190*60*70cm
7.Load capability:180kgs

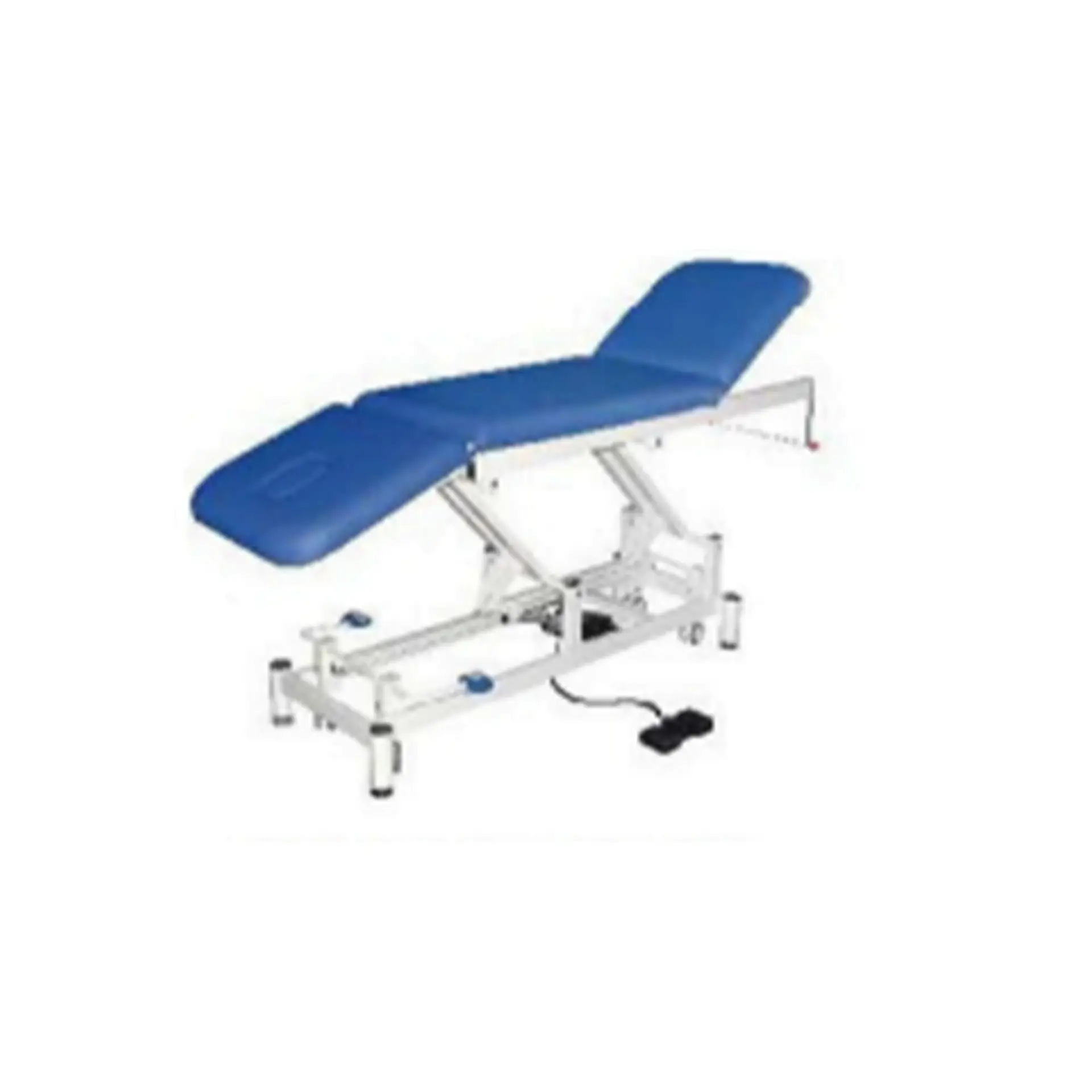

1.size 1900*550*600-800mm
2.frame: made of power coated steel, white color
3.surface three sections, equipped with 5cm soft sponge
mattress, PU cover, waterproof, easy cleaning, wear-resisting.
4.The bottom of the legs has rubber pad, anti-skidding
5.Backrest section: lifted up from 0°to 75°easily by gas spring
6.Height adjustment By foot pedal, controlled by motor, 600- 800mm
7.Foot section Adjustable by gas spring, 0-45°

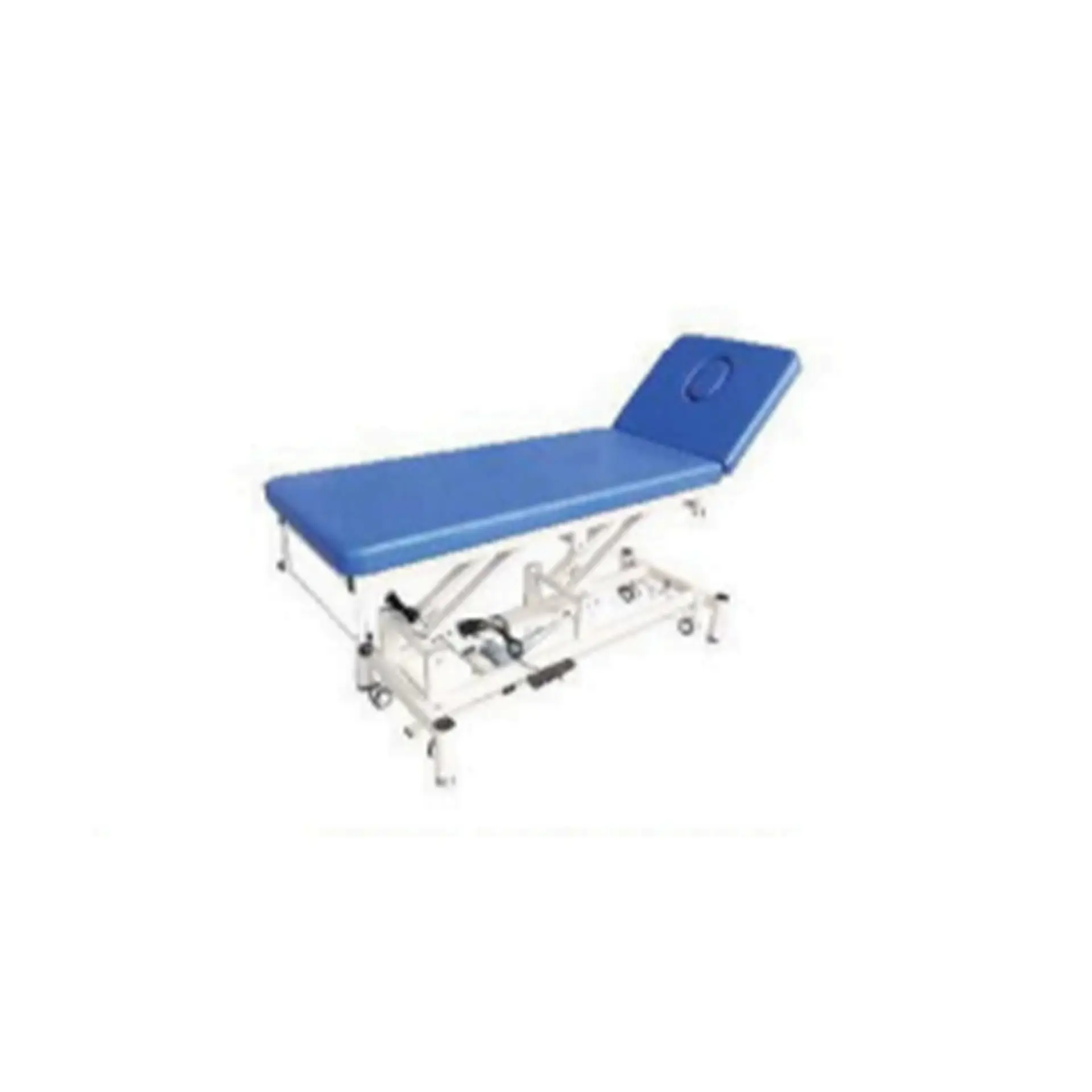

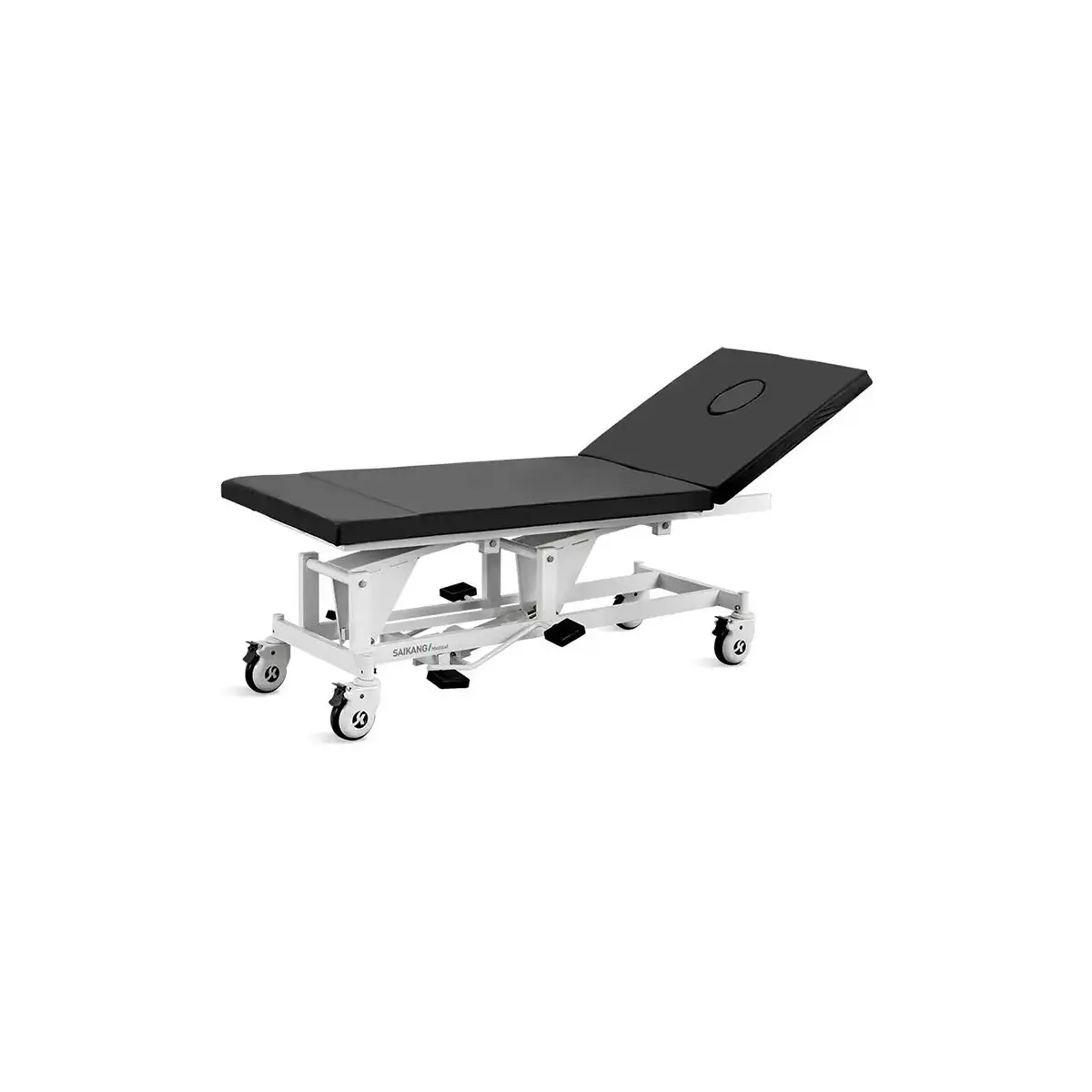

1.Size:1900*550*400-800mm
2.Frame:made of power coated steel, white color
3.Surface:two sections, equipped with 5cm soft sponge mattress, PU cover, waterproof, easy cleaning, wear-resisting.
4.The bottom of the legs has rubber pad, anti-skidding
5.Backrest section: lifted up from 0°to 75°easily by gas spring

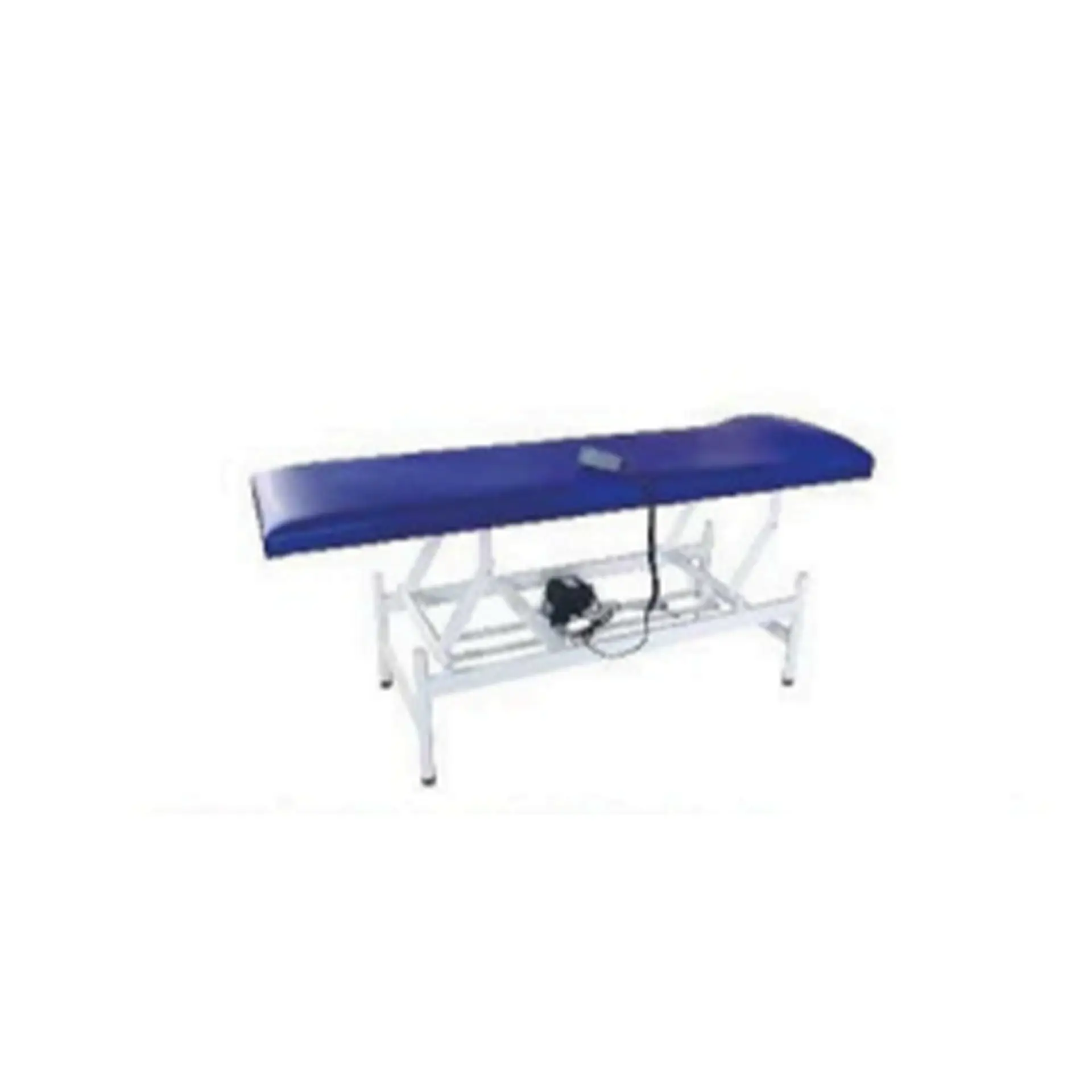

1.powder coated steel frame
2.high class sponge artifical leather mattress
3.knock down construction
4.height adjustable by electric motor
5.Size:190*60*50-75cm
6.Load bearing:159kgs

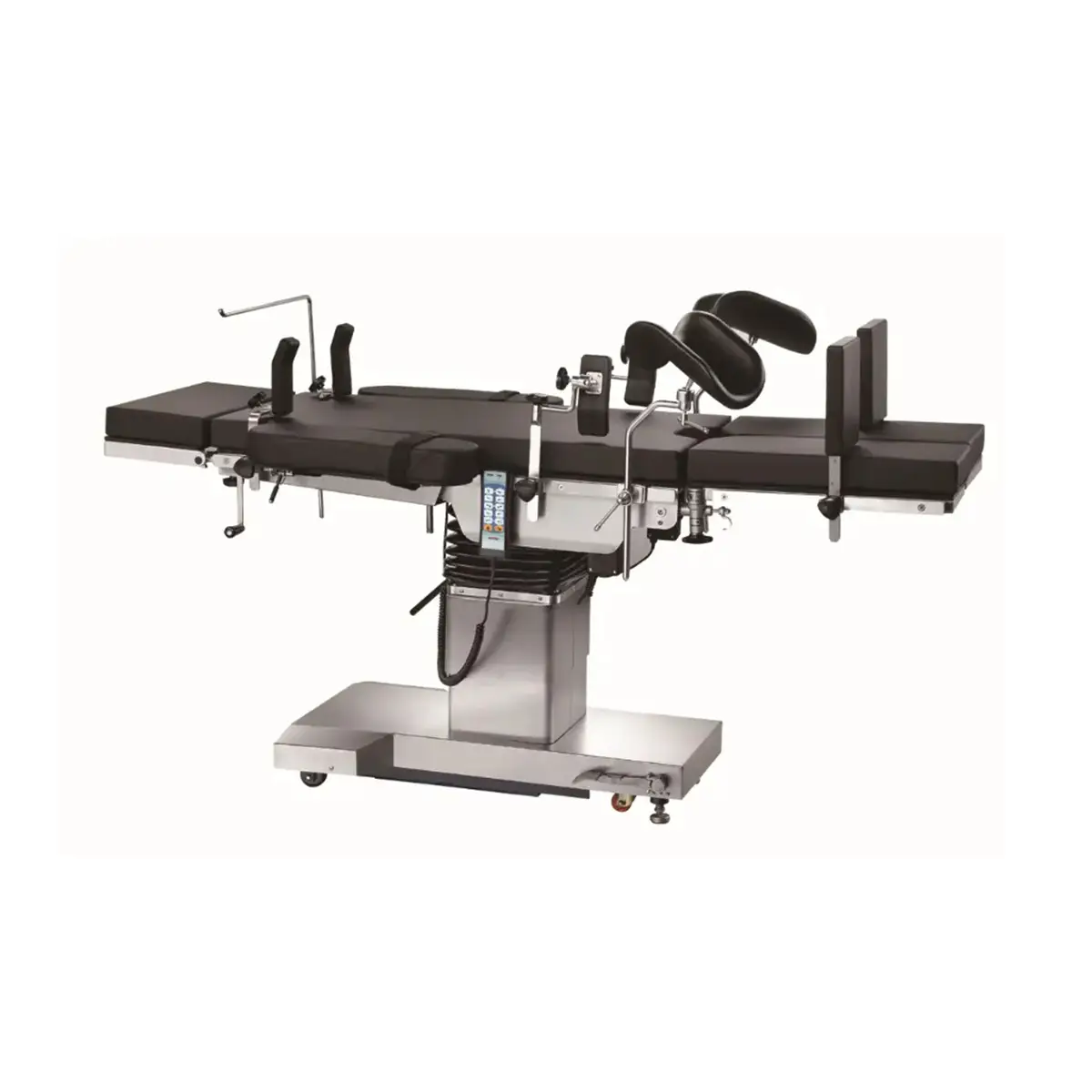

ELlectro-hydraulic operating table is made specially to meet
demand of sitting posture operations with a extra low position.It
adopts full 304 stainless steel,excellent properties on
antirust.Tabletop is X-raying available.
Lenth/Width:2085mm/550mm
Elevation(up/down):520mm/820mm
Trendelenburg:≥25°,Reverse Trendelenburg:≥25°
Lateral Tilt(left/right):15°/15°
Head Rest(up/down):40°/90°
Footplate(up/down&horizontal positioning):15°/90° 90°
Back plate(up/down):80°/20°

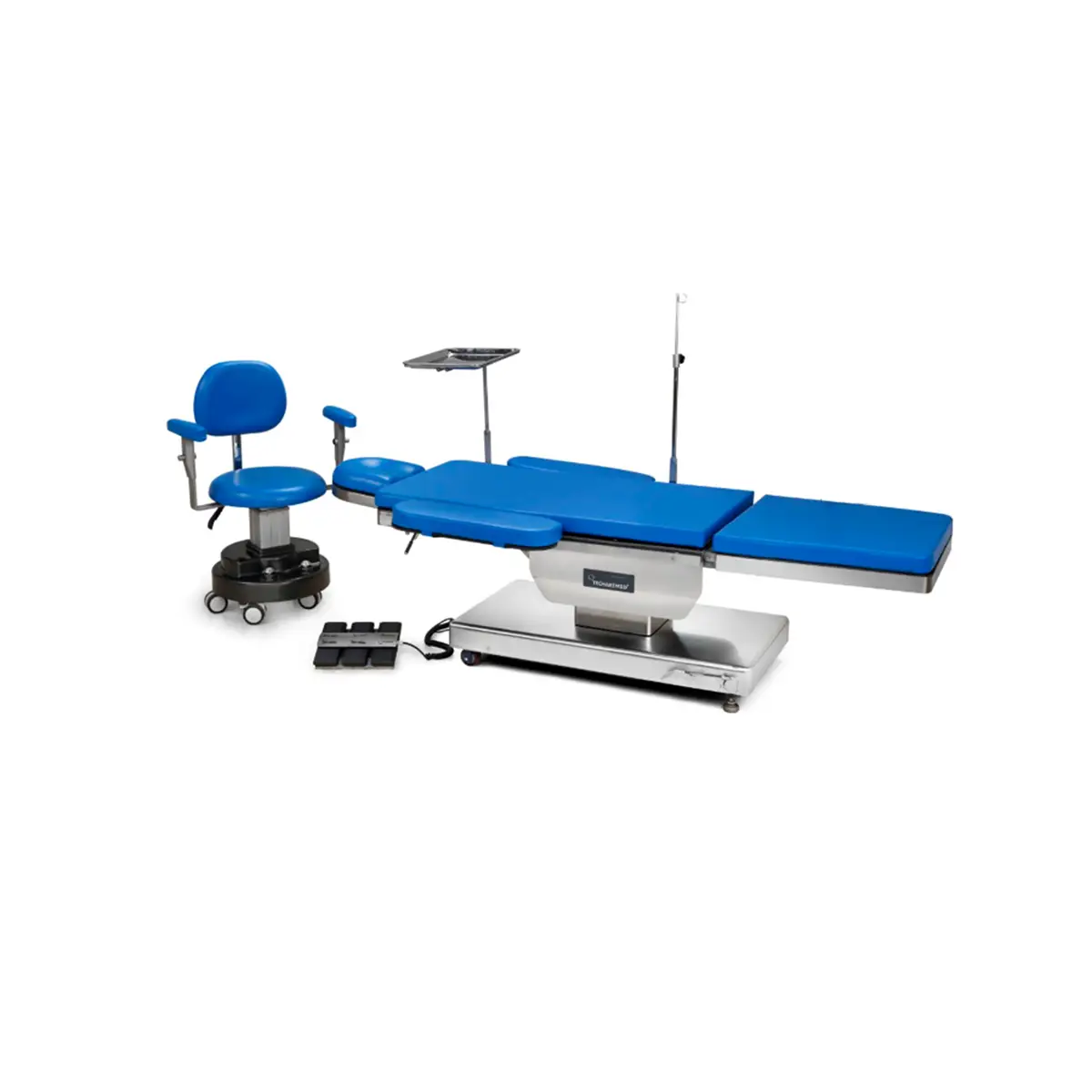

Electric operatiing table for Ophthalmology. with full affinity
profile..It adopts full 304 stainless steel,excellent properties on
anti-rust.
With doctor Chair
Lenth/Width:2080mm/550mm
Lowest height of table top:≤500mm
Height adjustment range≥200mm
Head Rest(up/down):45°/90°
Footplate(up/down):30°/30°
Back plate(up/down):45°/20°

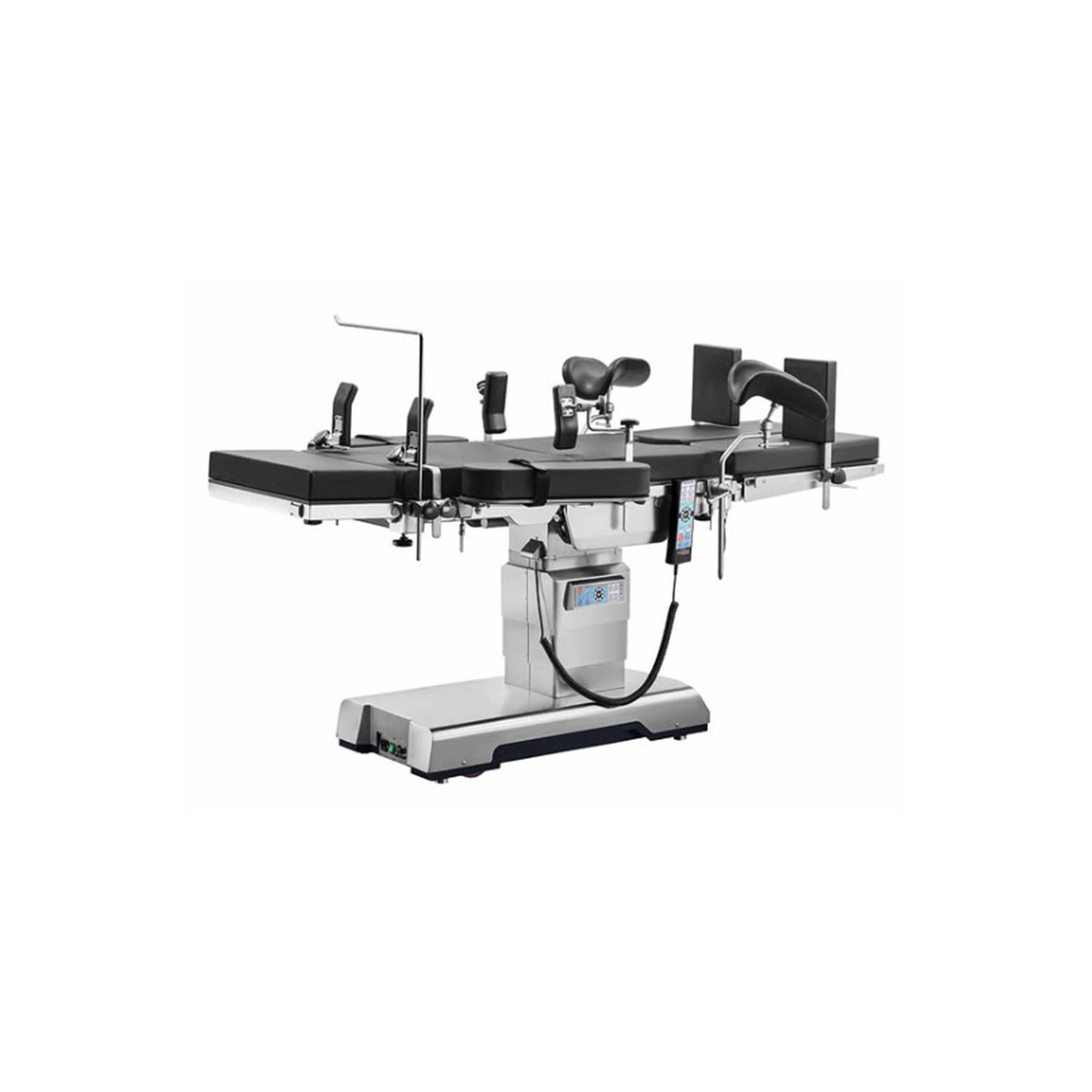

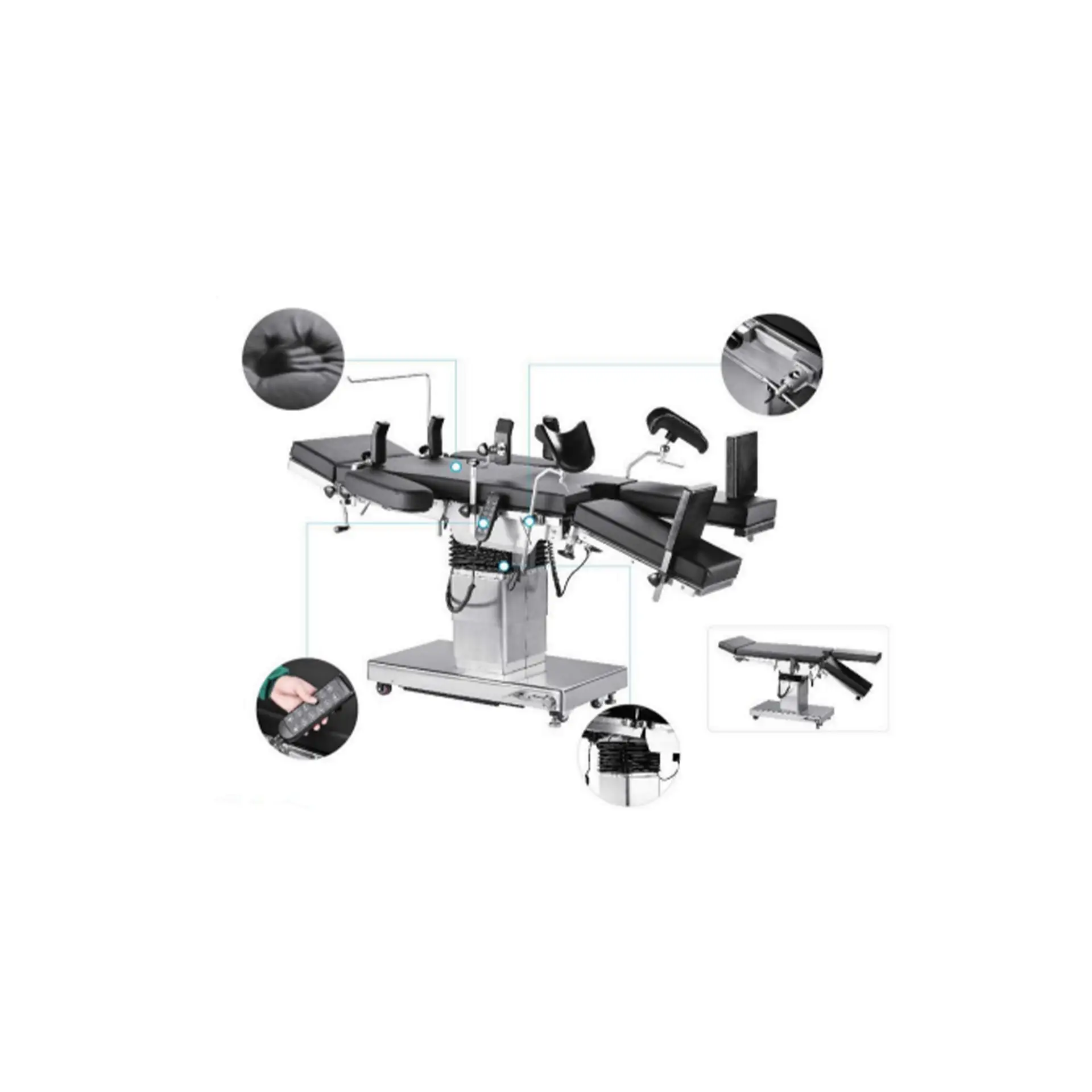

Electric operating table is made specially to meet demand of general surgical operations.It adopts full 304 stainless
steel,excellent properties on anti-rust.Tabletop is X-raying
available.can be sliding for over 300mm,that meet C-arm need.
Lenth/Width:2000mm/500mm
Elevation(up/down):680mm/930mm
Trendelenburg:≥25° Reverse Trendelenburg:≥25°
Lateral Tilt(left/right):20°/20°
Head Rest(up/down):45°/90°
Footplate(up/down&horizontal positioning): 90°
Back plate(up/down):75°/10°
Kidney bridge:120mm
Sliding:300mm

Electric operating table is made specially to meet demand of
general surgical operations.It adopts full 304 stainless
steel,excellent properties on anti-rust.Tabletop is X-raying
available.can be sliding for over 300mm,that meet C-arm need.
Lenth/Width:2100mm/550mm
Elevation(up/down):710mm/1010mm
Trendelenburg:≥25°,Reverse Trendelenburg:≥25°
Lateral Tilt(left/right):15°/15°
Head Rest(up/down):45°/90°
Footplate(up/down&horizontal positioning): 15°/90°/90°
Back plate(up/down):75°/20°

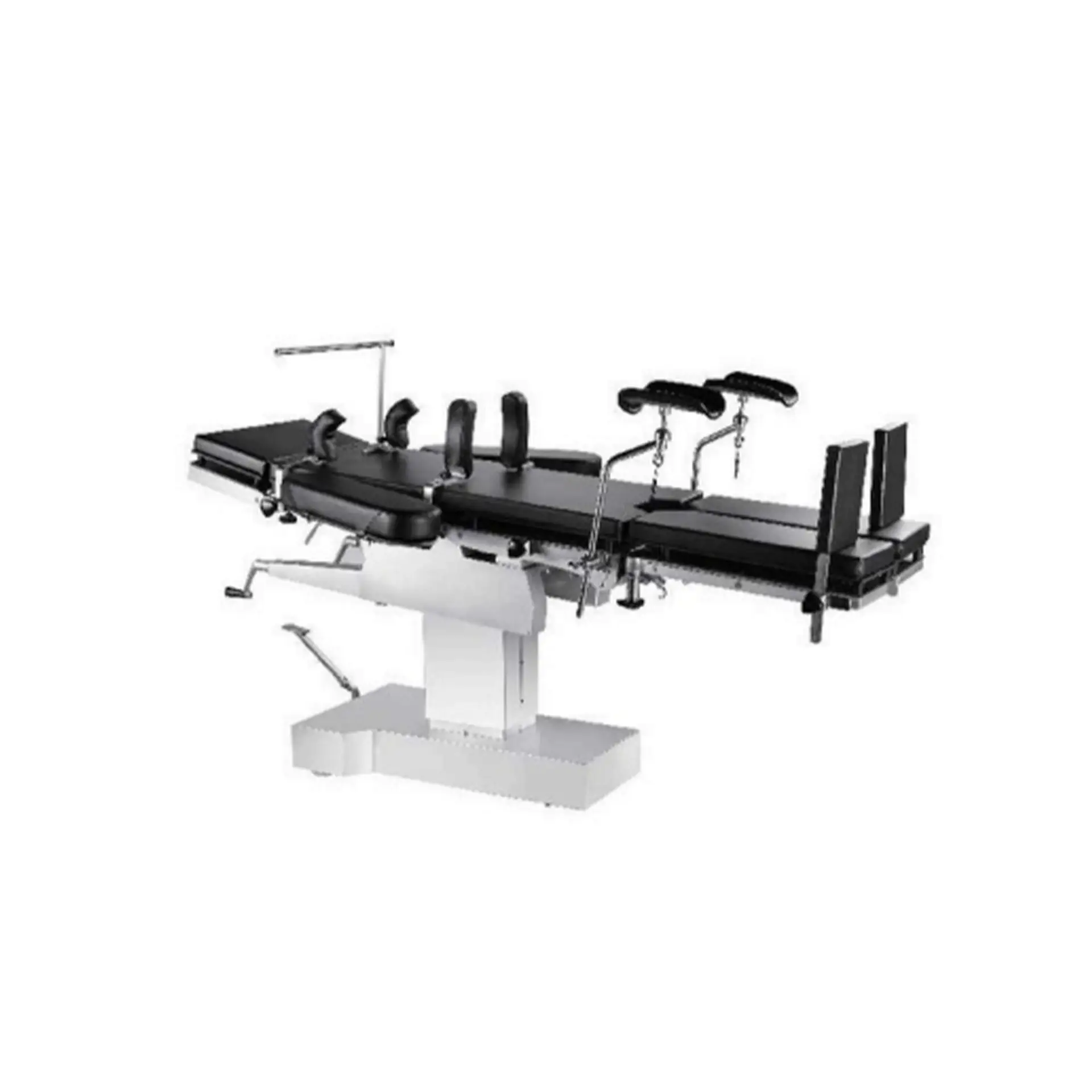

all mechanically operated, hydraulic pressure increase or decrease
It adopts stainless steel as its material with nice appearance and
compact structure, it brings convenience for operating and can be
applied for various surgical operations.
Lenth/width:2000mm/500mm
Elevation(up/down):780mm/1020mm
Trendelenburg 22°,Reverse Trendelenburg 22°
Lateral Tilt 18/°18°
Head rest(up/down) 45°/70°
Leg Plate(up/down) 15°/ 90°
Back Plate(up/down) 75°/15°
Kidney bridge elevation:120mm

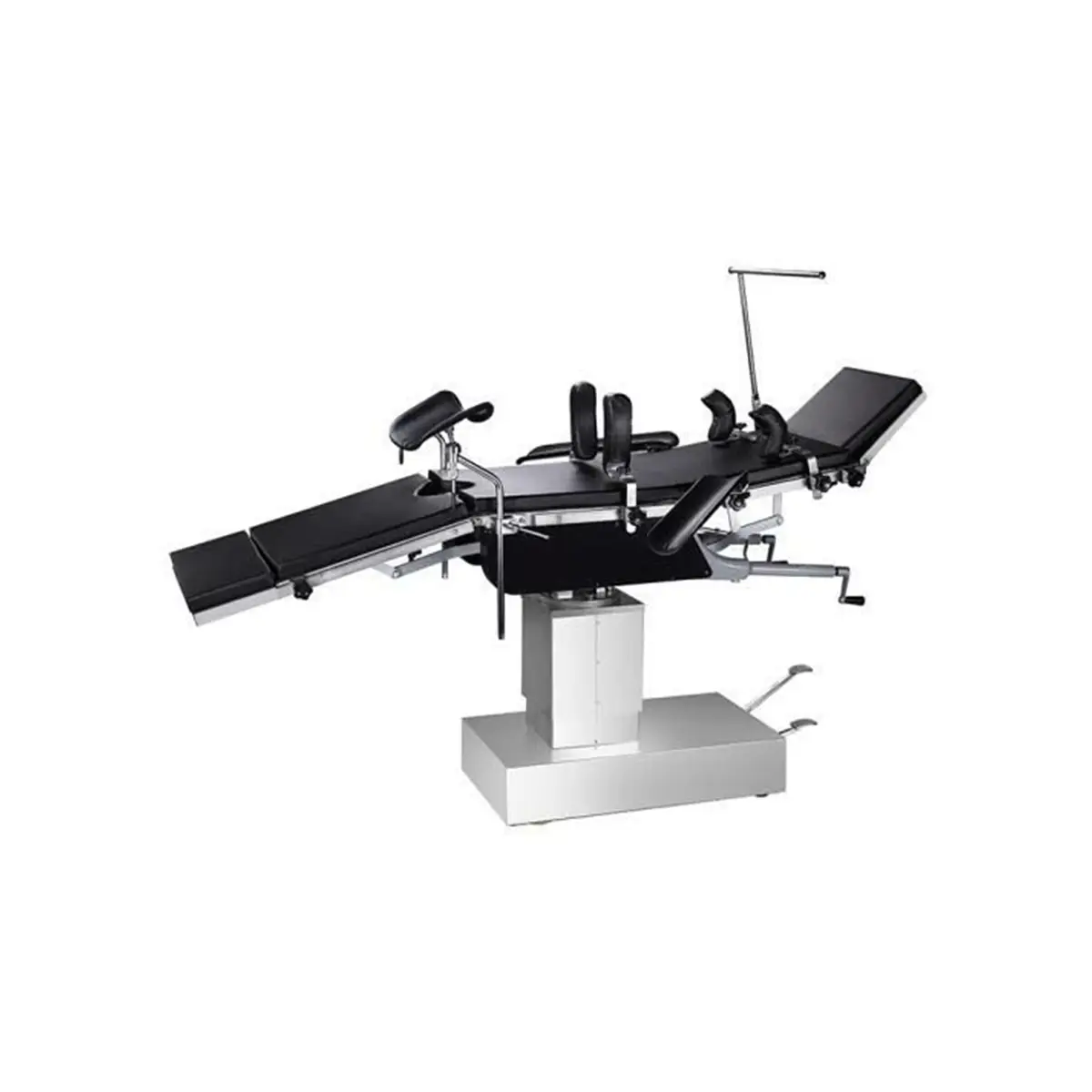

All mechanically head operated, hydraulic pressure increase or
decrease It adopts full stainless steel as its material with nice
appearance and compact structure,tabletop can be X-raying
available.
Lenth/width:2000mm/500mm
Elevation(up/down):780mm/1020mm
Trendelenburg 22°,Reverse Trendelenburg 22°
Lateral Tilt 18/°18°
Head rest(up/down) 45°/70°
Leg Plate(up/down) 15°/ 90°
Back Plate(up/down) 75°/15°

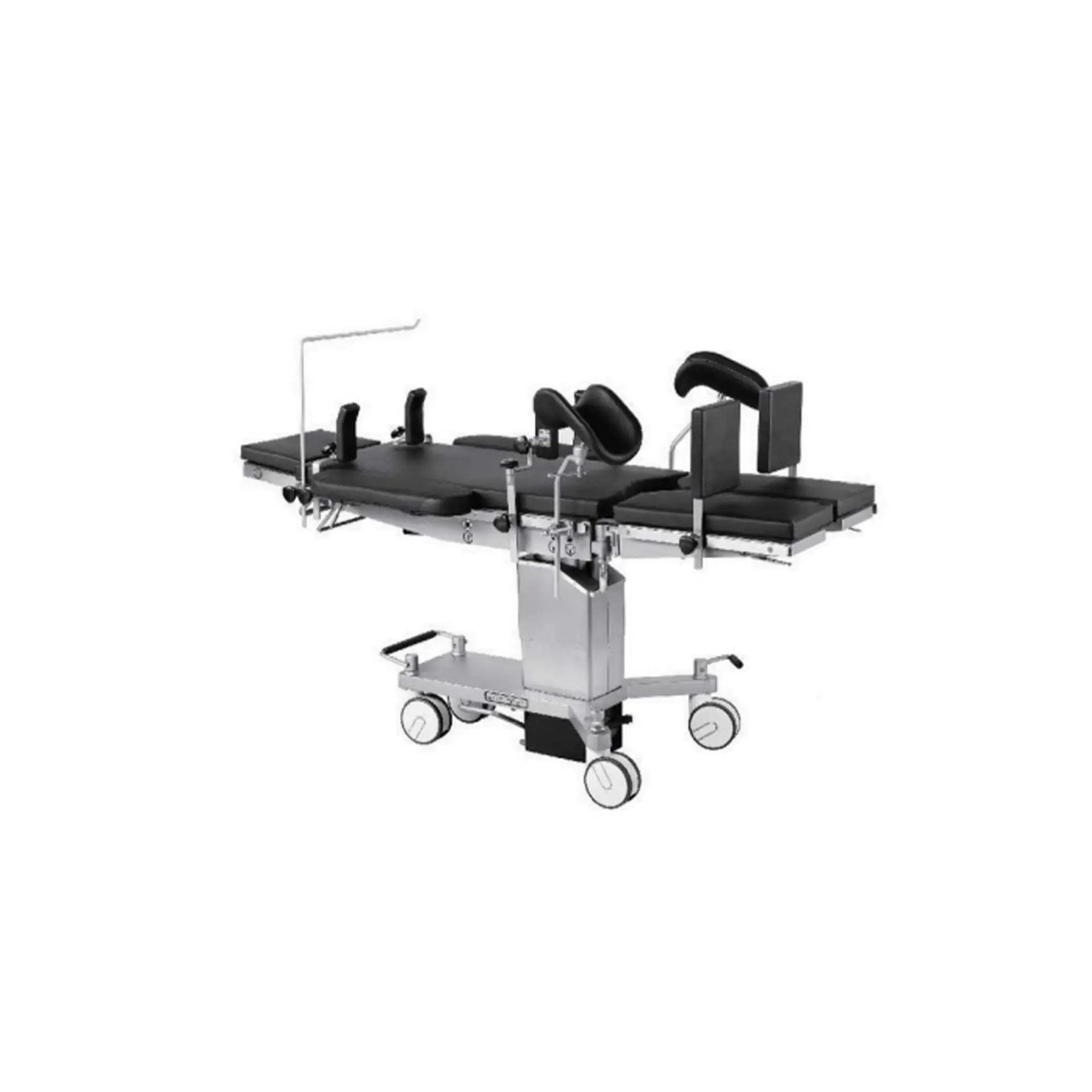

All mechanically operated, hydraulic pressure increase or
decrease It adopts stainless steel as its material with nice
appearance and compact structure, made of full 304 stainless
steel.Germany made Gas spring to adjust the backrest and leg
plate.Tabletop is X-raying Available. Lenth/width:2000mm/500mm
Elevation(up/down):705mm/1005mm
Trendelenburg/Reverse Trendelenburg:30°/25°
Lateral Tilt:20°/20°
Head rest(up/down):50°/60°
Leg Plate(up/down):15°/ 90°
Back Plate(up/down):70°/30

Longitudinal slide up to 310mm for free access to the C-arm without
Repositioning the patient.

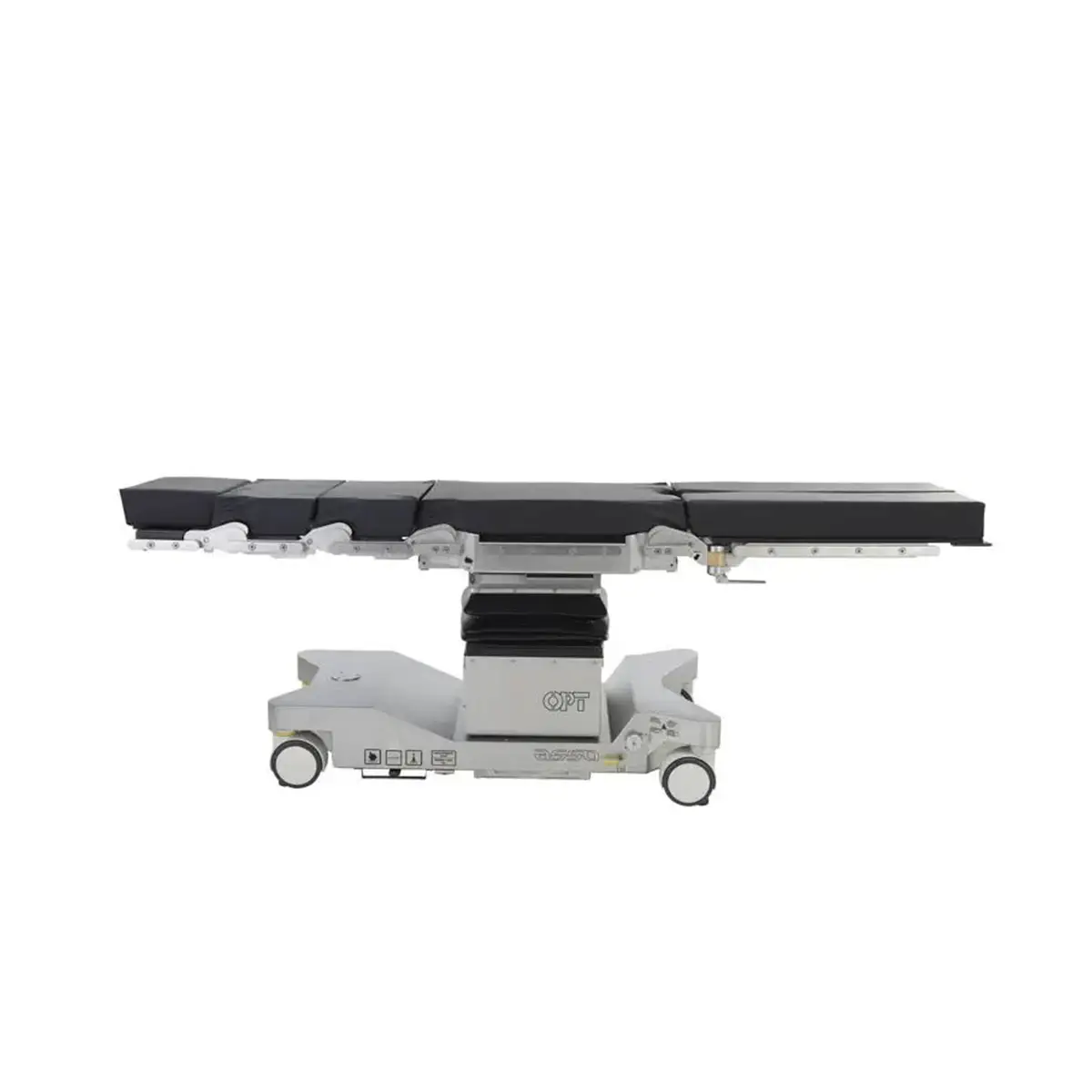

Extreme weight load capacity of 350 kg with l1igl1est safety and
stability, Modular design, tabletop tailored for various surgical disciplines needs.
The Easy click new mounting point enables the table to be adapted to wide variety of surgeries and patients’ heights. Memory pad with11 has an antistatic， waterproof design.
Standard override panel control makes the control safer, Maximum
and minimum heights of the ET800 ,for comfortable working ,both
seated and standing.
Lenth/width:2100mm/550mm
Elevation(up/down):550mm/1050mm
Trendelenburg:35°,Reverse Trendelenburg:35°
Lateral Tilt(left/right):25°/25°
Head Rest(up/down):40°/90°
Footplate(up/down&horizontal positioning):80°/90° 90°
Back plate(up/down):80°/45°
Longitudinal Sliding:310mm
Load Capacity: 350KG
Number of section：6

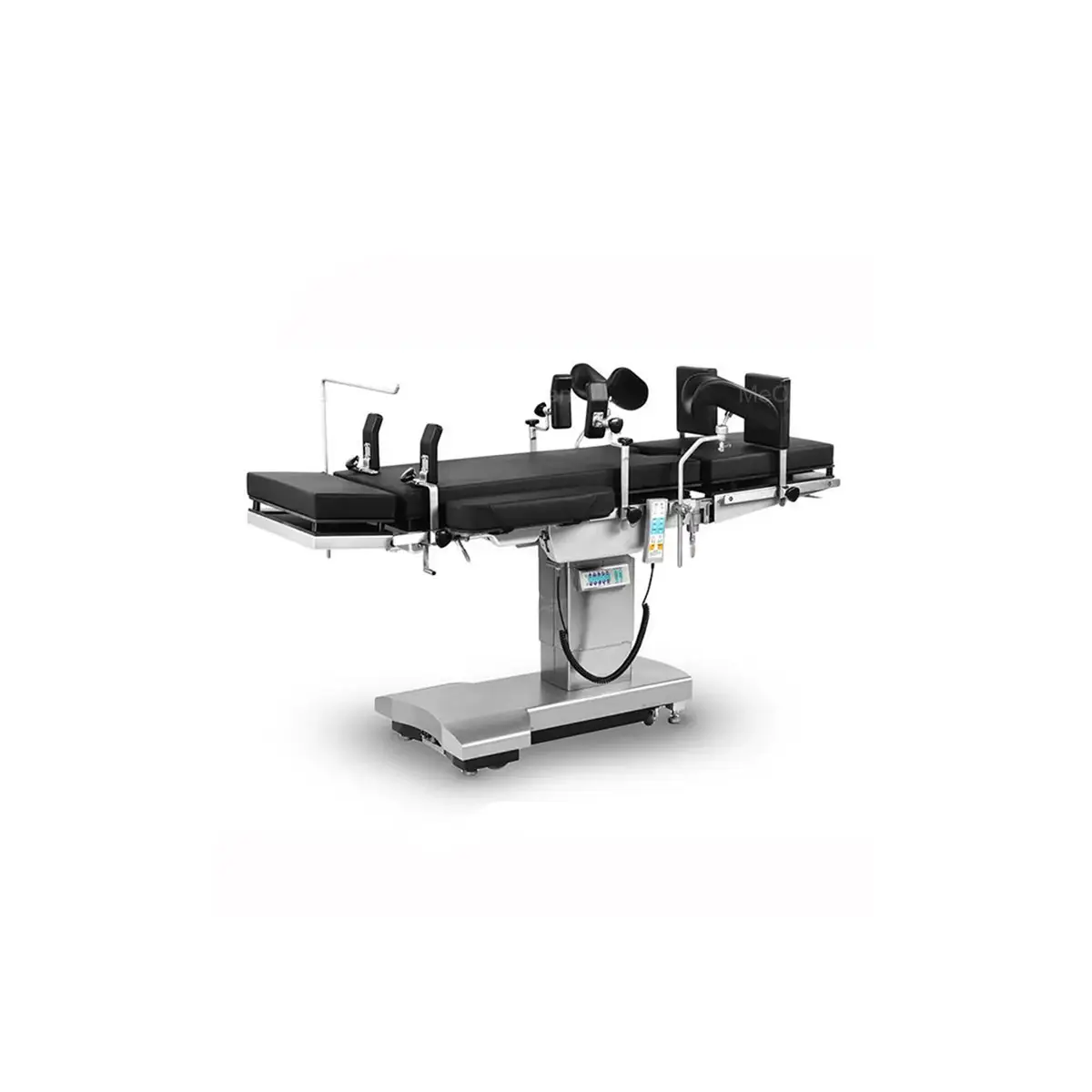

Electro-hydraulic operating table is made specially to meet
demand of general surgical operations.It adopts full 304 stainless
steel.Tabletop is X-raying available.Auto-lock on remote
control,electric base lock and release.Sliding can be 350mm,0
reset function,with battery available.
Lenth/width:1960mm/500mm
Elevation(up/down):690mm/1100mm
Trendelenburg:30°,Reverse Trendelenburg:30°
Lateral Tilt(left/right):20°/20°
Head Rest(up/down):40°/90°
Footplate(up/down&horizontal positioning):15°/90° 90°
Back plate(up/down):90°/40°
Longitudinal Sliding:350mm

Electro-hydraulic operating table is made specially to meet
demand of general surgical operations.It adopts full 304 stainless
steel.Tabletop is X-raying available.Auto-lock on remote
control,electric base lock and release.Sliding can be 350mm,0
reset function,with battery available.
Lenth/width:2170mm/550mm
Elevation(up/down):690mm/1100mm
Trendelenburg:30°,Reverse Trendelenburg:30°
Lateral Tilt(left/right):20°/20°
Head Rest(up/down):40°/90°
Footplate(up/down&horizontal positioning):15°/90° 90°
Back plate(up/down):85°/40°
Longitudinal Sliding:350mm
Power:220v,50Hz,1.0kW

This optional model without battery and O reset function.the
technical datas will remain the same with normal ET700,can be
sliding for C-arm and X-ray
Lenth/width:1980mm/500mm
Elevation(up/down):690mm/1110mm
Trendelenburg:28°,Reverse Trendelenburg:28°
Lateral Tilt(left/right):18°/18°
Head Rest(up/down):60°/80°
Footplate(up/down&horizontal positioning):15°/80° /90°
Back plate(up/down):75°/20°
Longitudinal Sliding:340mm
